M-SIX 2.5000 FACE MILL

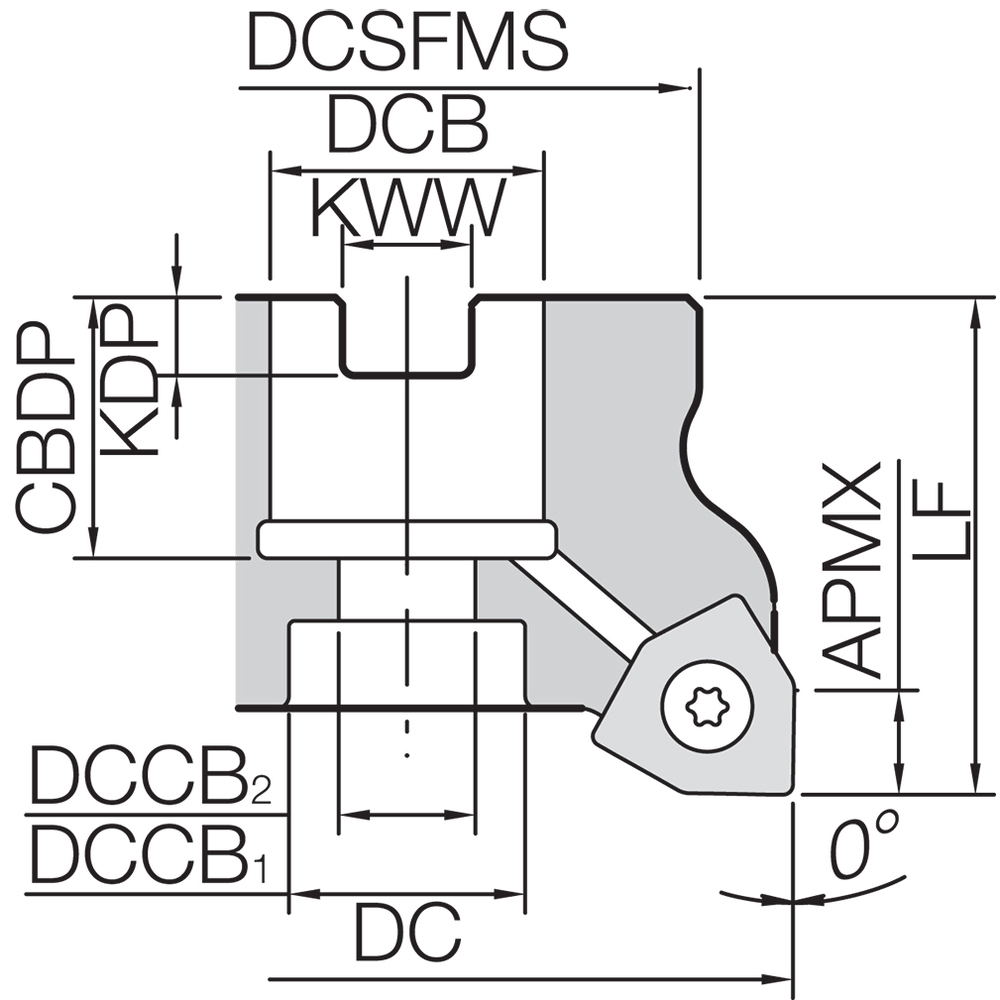

Indexable Face Mill; 2-1/2″ Dia. × 3/4″ Shank Dia. × 1.5748″ OAL × 0.315″ LOC ; 3 Inserts ; 90 Degrees ; Series M-SIX
| Cutting Diameter (DC/DCX) | 2-1/2″ | Body Material | Steel |
| Cutting Diameter (DC) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 | Application | Facing | Shouldering | Slotting | Plunging |
| Depth of Cut Maximum (APMX) | 0.315″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 1.5748″ | Tool Type | Face Mill |
| Master Insert Identification (MIID) | PNMU1205… | PNEU1205… | Series/List # | M-SIX |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Alternate Manufacture # MFWN902500R3T | Country of Origin | USA |
Shipping Info
Package Weight
3.5320
