2.5000 FACE MILL

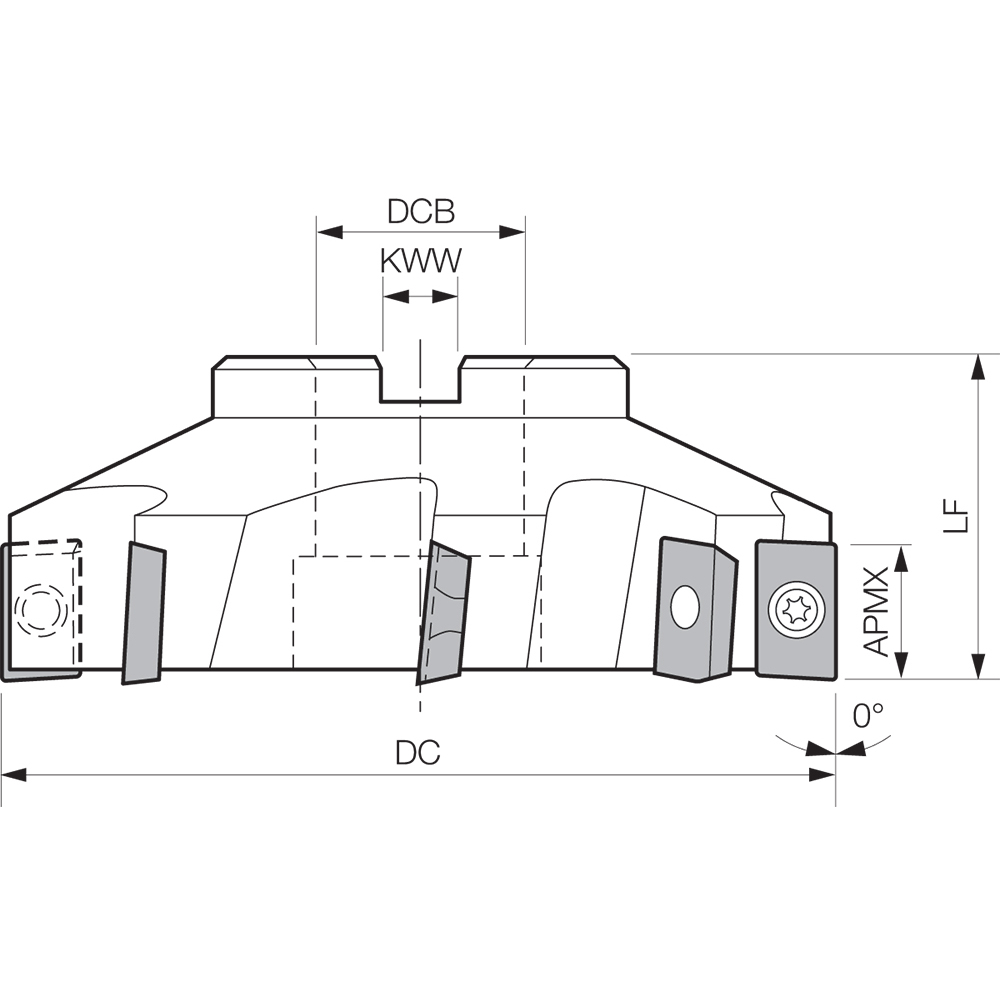

Indexable Face Mill; 2-1/2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 0.64″ LOC ; 3 Inserts ; 90 Degrees ; Series FM-AL
| Cutting Diameter (DC/DCX) | 2-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 2-1/2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.64″ | Application | Facing | Shouldering | Slotting of Aluminum |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.57″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Master Insert Identification (MIID) | APET1604… | Tool Type | Face Mill |
| Ramping Angle Maximum (RMPX) | 8 Degrees | Series/List # | FM-AL |
Product Features
| Family Description | Alternate Manufacture # FMAL2500903 | Country of Origin | USA |
Shipping Info
Package Weight
3.5320
