MSRS 154000R6T15 4.0000

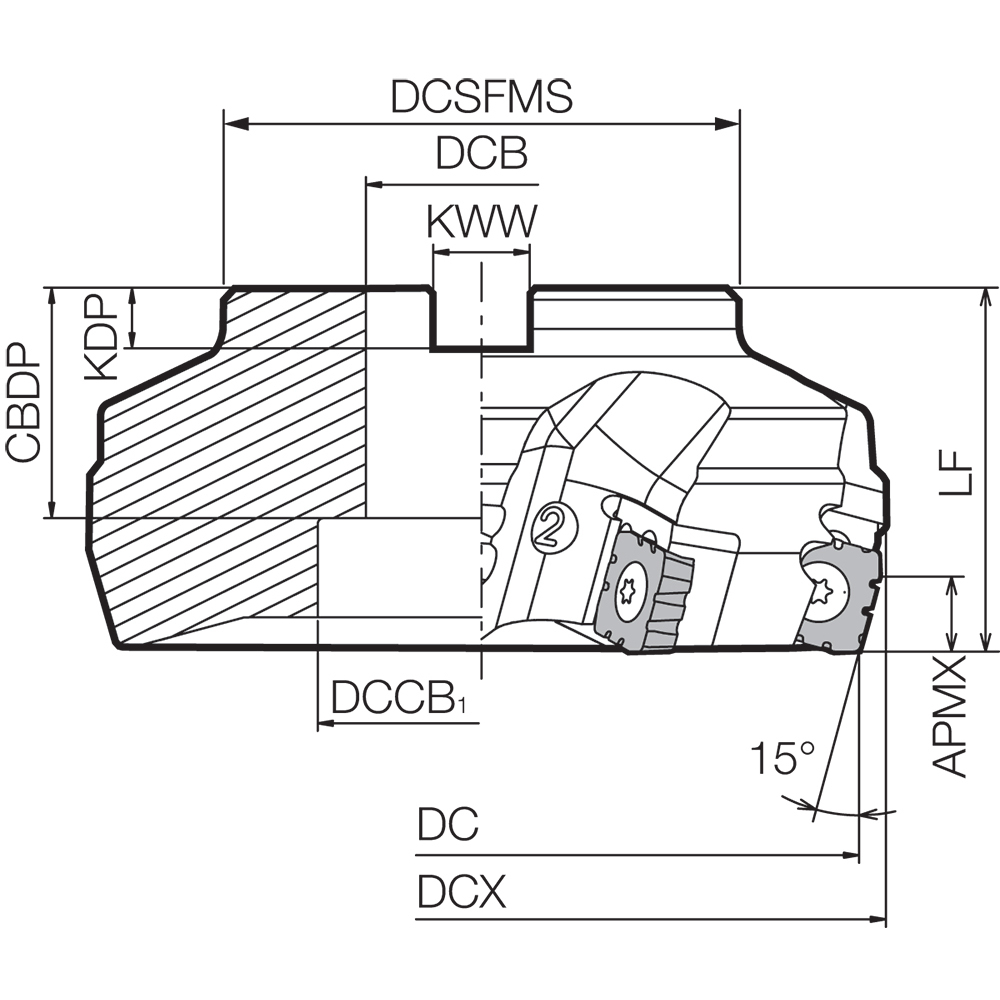

Indexable Face Mill; 4.27″ Dia. × 1-1/4″ Shank Dia. × 1.9685″ OAL × 0.4724″ LOC ; 6 Inserts ; 75 Degrees ; Series MSRS15
| Cutting Diameter (DC/DCX) | 4.27″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 4.27″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | Facing | Heavy Milling |
| Depth of Cut Maximum (APMX) | 0.4724″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Overall Length (OAL) | 1.9685″ | Tool Type | Face Mill |
| Master Insert Identification (MIID) | SPMT1806ED… | Series/List # | MSRS15 |
Product Features
| Family Description | Alternate Manufacture # MSRS154000R6T | Country of Origin | Japan |
Shipping Info
Package Weight
3.9350
