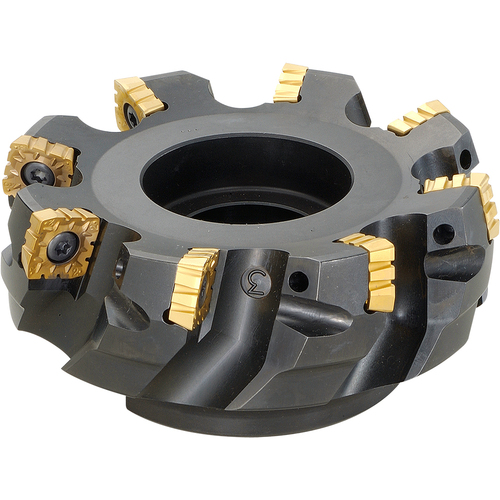

MSRS 15100R6T15 100.00MM
Indexable Face Mill; 107 mm Dia. × 31.75 mm Shank Dia. × 50 mm OAL × 12 mm LOC ; 6 Inserts ; 75 Degrees ; Series MSRS15
| Cutting Diameter (DC/DCX) | 107 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 100 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 107 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | Facing | Heavy Milling |
| Depth of Cut Maximum (APMX) | 12 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Overall Length (OAL) | 50 mm | Tool Type | Face Mill |
| Hub Diameter (DHUB) | 70 mm | Series/List # | MSRS15 |
| Master Insert Identification (MIID) | SPMT1806ED… |
Product Features
| Family Description | Alternate Manufacture # MSRS15100R6T | Country of Origin | Japan |
Shipping Info
Package Weight
3.9346
