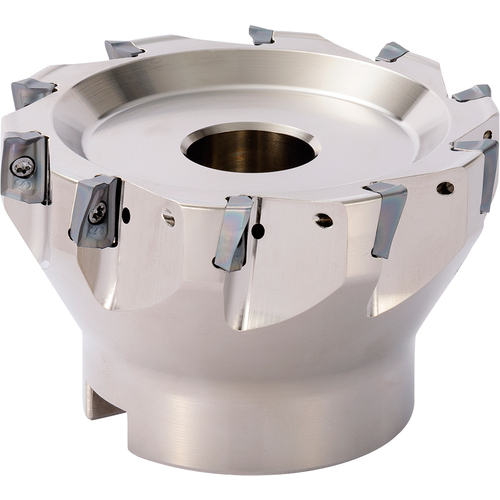

MEC 2.5000 FACE MILL
Indexable Face Mill; 2-1/2″ Dia. × 3/4″ Shank Dia. × 1.5748″ OAL × 0.3937″ LOC ; 6 Inserts ; 90 Degrees ; Series MEC

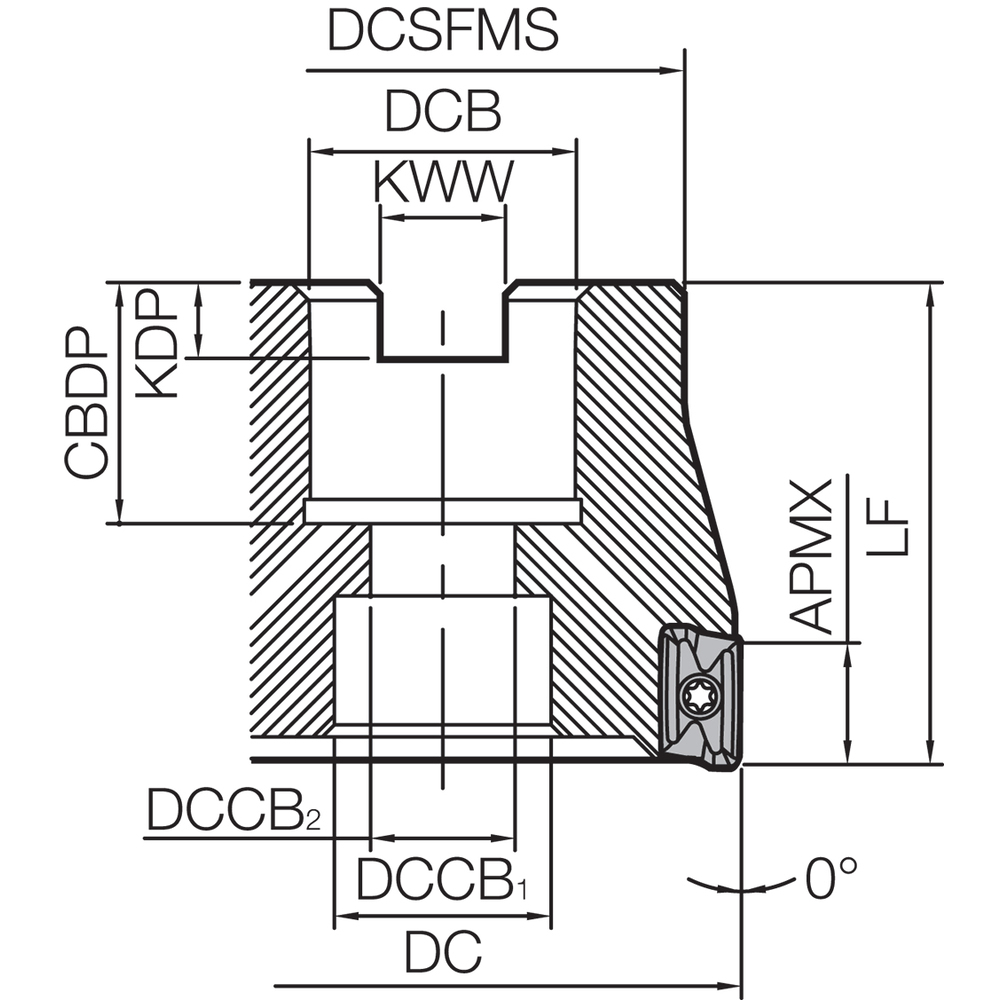

| Cutting Diameter (DC/DCX) | 2-1/2″ | Body Material | Steel |
| Cutting Diameter (DC) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | Facing | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 0.3937″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 1.5748″ | Tool Type | Face Mill |
| Master Insert Identification (MIID) | BDMT11T3..ER-JT | BDMT11T3..ER-JS | BDGT11T3..FR-JA | BDMT11T3..FR | Series/List # | MEC |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Alternate Manufacture # MEC2500R11T6T | Country of Origin | USA |
Shipping Info
Package Weight
1.9224
