MFPN 2 FACE MILL

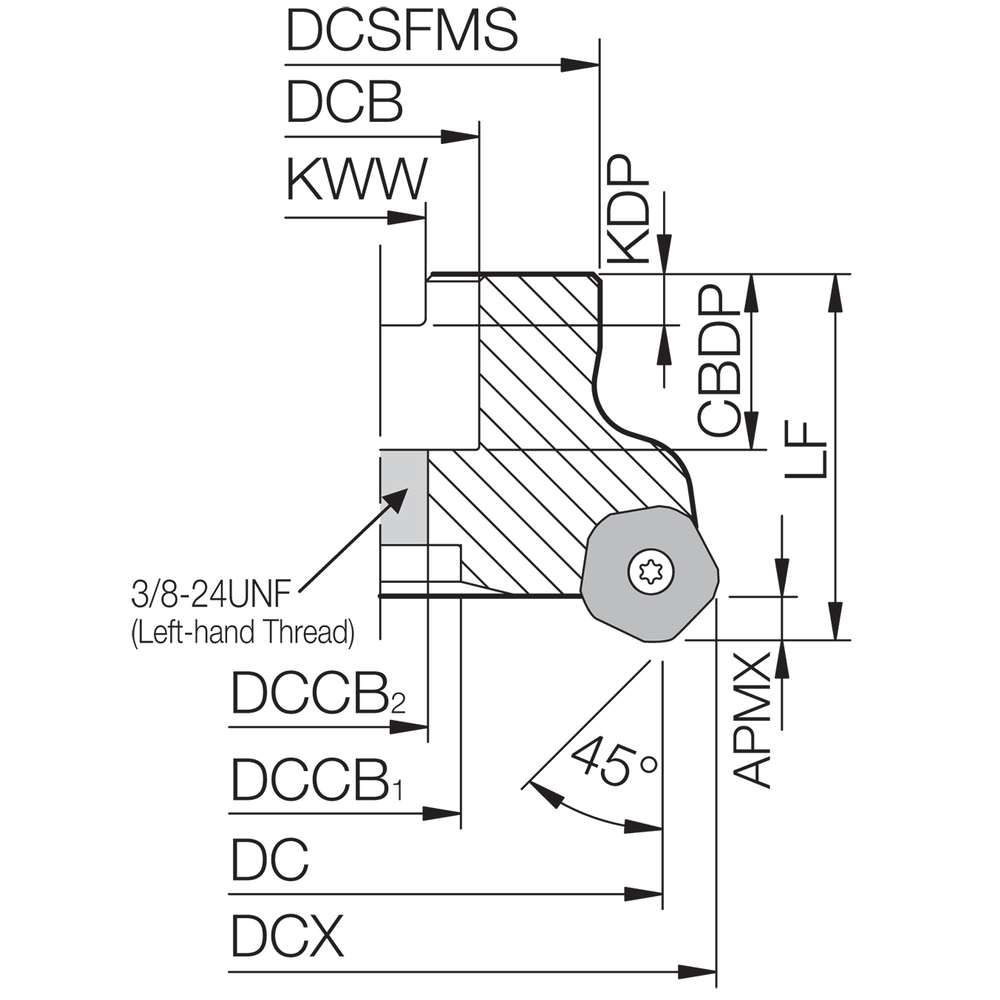

Indexable Face Mill; 2.31″ Dia. × 3/4″ Shank Dia. × 1.9685″ OAL × 0.2362″ LOC ; 4 Inserts ; 45 Degrees ; Series MFPN
| Cutting Diameter (DC/DCX) | 2.31″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2.31″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Application | Facing | Chamfering |
| Depth of Cut Maximum (APMX) | 0.2362″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 1.9685″ | Tool Type | Face Mill |
| Master Insert Identification (MIID) | PNMU1205… | PNEU1205… | Series/List # | MFPN |
Product Features
| Family Description | Alternate Manufacture # MFPN452000R4T | Country of Origin | USA |
Shipping Info
Package Weight
0.9
