MSRS 90080R14TM90 80.00MM

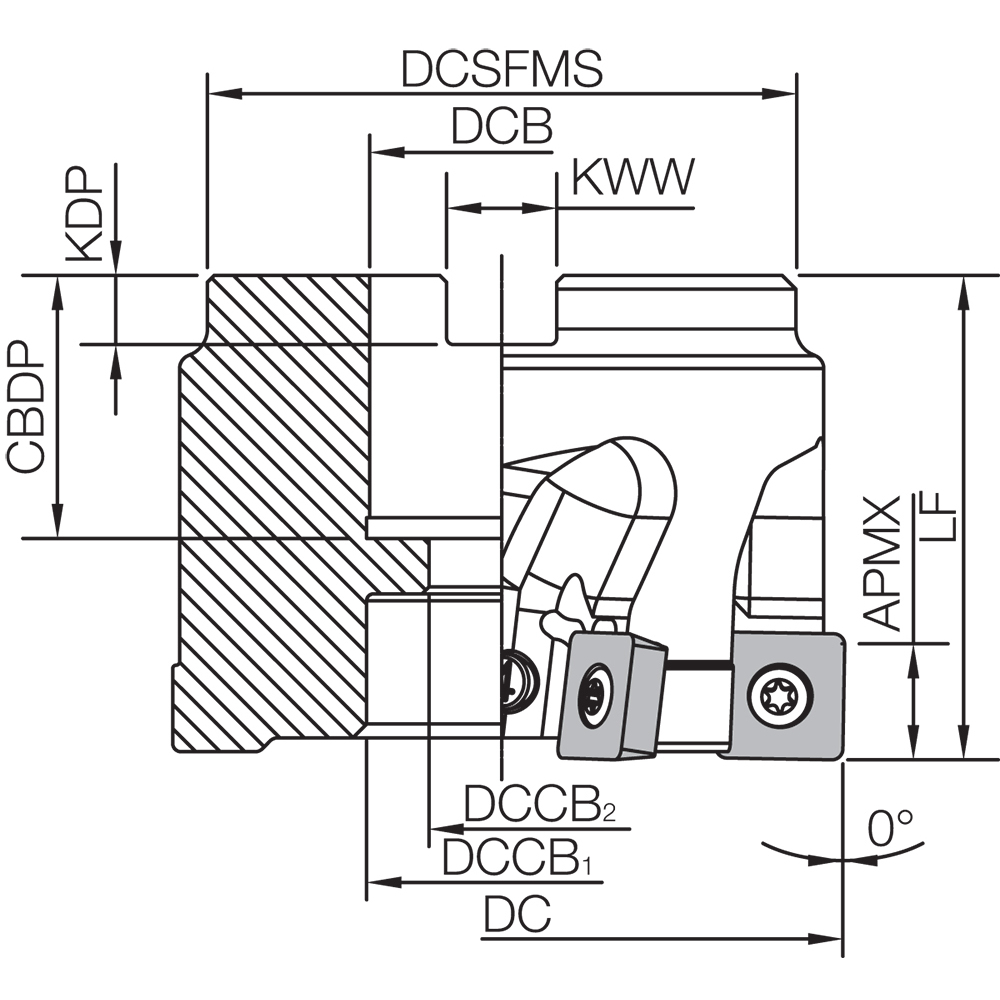

Indexable Face Mill; 70 mm Dia. × 27 mm Shank Dia. × 60 mm OAL × 16.5 mm LOC ; 4 Inserts ; 90 Degrees ; Series MSRS90
| Cutting Diameter (DC/DCX) | 70 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 70 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Application | Facing | Shouldering | Slotting | Heavy Milling |
| Depth of Cut Maximum (APMX) | 16.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 60 mm | Tool Type | Face Mill |
| Master Insert Identification (MIID) | SPMT1806EN… | Series/List # | MSRS90 |
Product Features
| Family Description | Alternate Manufacture # MSRS90080R14TM | Country of Origin | Japan |
Shipping Info
Package Weight
3.3945
