MFSN88050R5TMG 88 50.00MM
Indexable Face Mill; 52 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 5 mm LOC ; 5 Inserts ; 88 Degrees ; Series MFSN88

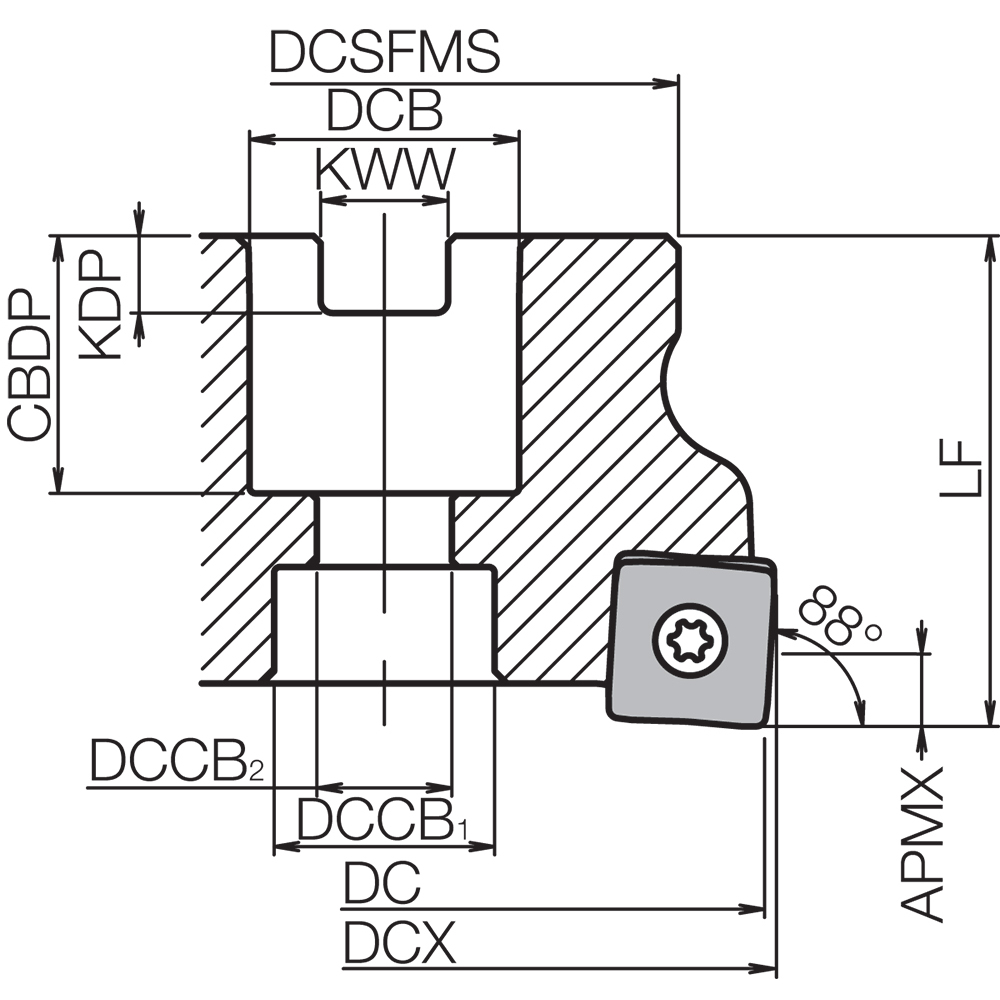

| Cutting Diameter (DC/DCX) | 52 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 52 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | Facing | Shoulder Roughing | Slotting |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Tool Cutting Edge Angle (KAPR) | 88 Degrees |
| Overall Length (OAL) | 40 mm | Tool Type | Face Mill |
| Hub Diameter (DHUB) | 48 mm | Series/List # | MFSN88 |
| Master Insert Identification (MIID) | SNMU1305… |
Product Features
| Family Description | Alternate Manufacture # MFSN88050R5TMG | Country of Origin | Japan |
Shipping Info
Package Weight
1.9101
