MFAH 080RA10TSF 80.00MM
Indexable Face Mill; 62 mm Dia. × 25.4 mm Shank Dia. × 50 mm OAL × 4.6 mm LOC ; 10 Inserts ; 90 Degrees ; Series MFAH

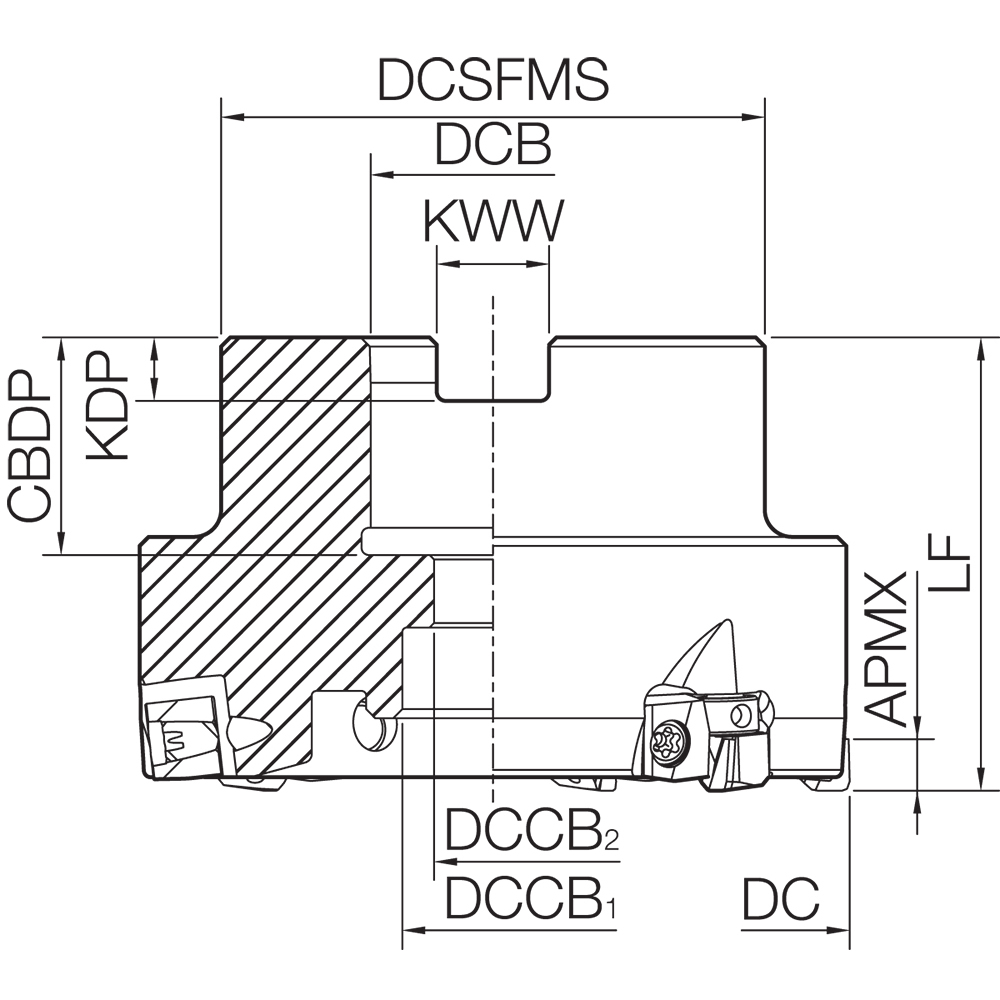

| Cutting Diameter (DC/DCX) | 62 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 80 mm | Body Material | Hybrid Steel |
| Cutting Diameter Maximum (DCX) | 62 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 | Application | Facing | Finishing of Aluminum |
| Depth of Cut Maximum (APMX) | 4.6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 50 mm | Tool Type | Face Mill |
| Master Insert Identification (MIID) | ENET09… | Series/List # | MFAH |
Product Features
| Family Description | Alternate Manufacture # MFAH080RA10TSF | Country of Origin | Japan |
Shipping Info
Package Weight
4.8171
