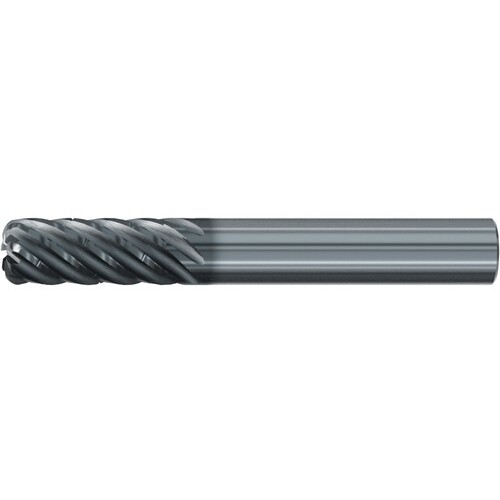

3/4 EM TOPCUT VAR 7FL
| Cutting Diameter (DC) | 3/4″ | Tool Type | Chip Splitter |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Length Group | Long Length |
| Depth of Cut Maximum (APMX) | 1-7/8″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 5″ | Shank Standard | DIN 6535 |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | AlCr | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 7 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | | 38 Degrees | 39 Degrees | | Series/List # | 3957L |
| End Shape | Square | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Usable Length (LU) | 1-7/8″ | Trade Name | Top-CUT VAR |
| Applicable Material | | Universal Materials | | Connection Code Machine Side (CCMS) | Cylindrical - HA |
| Application | | Finishing | | Shank Diameter Tolerance (TCDMM) | h6 |
| Corner Radius (RE) | 0.03″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
