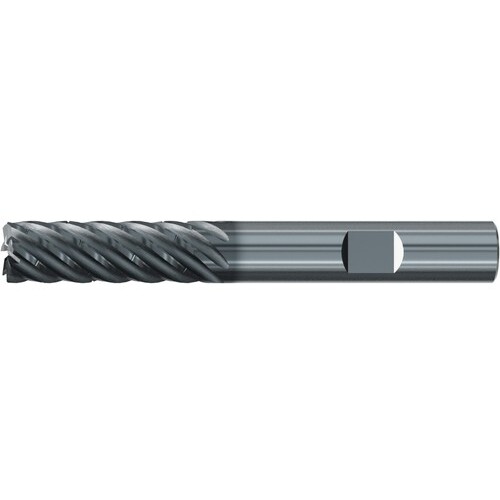

5/8 EM TOPCUT VAR 7FL
| Cutting Diameter (DC) | 5/8″ | Corner Chamfer Width (CHW) | 0.008″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Tool Type | Chip Splitter |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Length Group | Extra Long Length |
| Overall Length (OAL) | 4-3/4″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 |
| Coating | AlCr | Style | Square |
| Flute Count (NOF) | 7 | Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | | 38 Degrees | 39 Degrees | | Measurement Type | Inch |
| End Shape | Square | Series/List # | 3956L |
| Usable Length (LU) | 2-1/4″ | Trade Name | Top-CUT VAR |
| Applicable Material | | Universal Materials | | Connection Code Machine Side (CCMS) | Weldon - HB |
| Application | | Finishing | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
