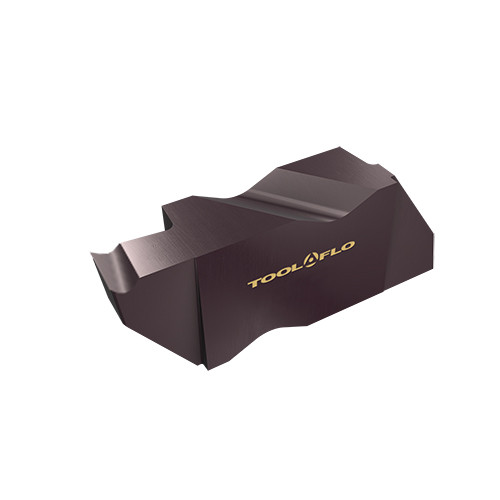

FLG-3047R-CC AC3S
Grooving Insert; 0.047″ CW × 0.085″ Max Depth × 0″ Thickness ; Carbide ; AC3S ; TiAlN
| Cutting Width (CW) | 0.047″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.085″ | Chip Breaker Type | CC |
| Insert Thickness (S) | 0″ | Measurement Type | Inch |
| Coating | TiAlN | Min. Grooving Feed (fg(min)) | 0 ″/rev |
| Grade | AC3S | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.405″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Int Ext Grooving Flo Lock | |
Product Features
| Family Description | Internal and External Grooving #3 Gage FloLock Inserts with Chip Curler and Right Hand Clamping Notch | Country of Origin | USA |
