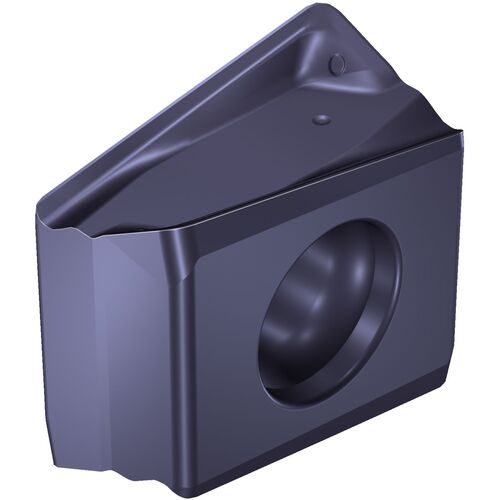

MS40-130608M-M50 1230
Milling Insert; 13 mm Length × 6.8 mm Width × 12.07 mm Thickness ; 1230 ; Carbide ; TiAlSiN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | Tangential Milling | Insert Style | MS40 |
| Cutting Edge Length (L) | 13 mm | Insert Size | 1306 |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 12 mm | Chip Breaker Type | M50 |
| Insert Width (W1) | 6.8 mm | Series/List # | MS40 |
| Insert Thickness (S) | 12.07 mm | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 2.2 mm | Tool Type | Double sided |
| Cutting Depth Maximum (CDX) | 12 mm | Coating Process | PVD |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | TiAlSiN | Measurement Type | Metric |
| Grade | 1230 | Body Material | Carbide |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.02
