C2I-H2N-0400-0003-CR1205

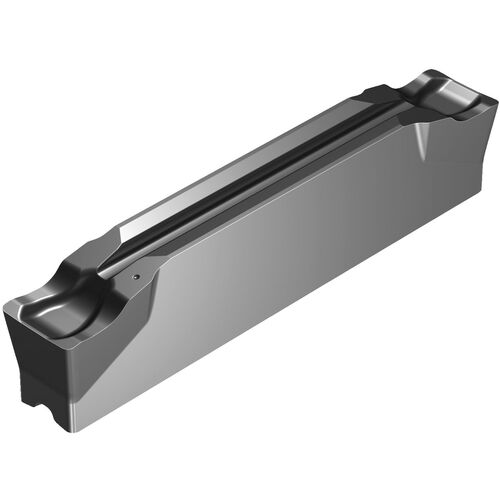

Parting Off Insert; 4 mm CW × 4.35 mm Thickness × 0.3 mm Corner Radius ; Neutral ; Carbide ; ALTIN ; 1205 ; Series C2I-x2N-CR
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 4 mm | Insert Size | H2 |
| Corner Radius (RE) | 0.3 mm | Insert Style | C2I |
| Insert Thickness (S) | 4.35 mm | Mounting Style | Clamp |
| Cutting Depth Maximum (CDX) | 23.75 mm | Number of Cutting Edges | 2 |
| Cutting Edge Material | Carbide | Series/List # | C2I-x2N-CR |
| Coating | ALTIN | Tool Type | Cut-Off Insert |
| Grade | 1205 | Measurement Type | Mectric |
| Cutting Direction (HAND) | Neutral | Clearance Angle Major (AN) | 7 Degrees |
| Application | Parting, Grooving | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Non-Ferrous Materials | | Insert Seat Size Code (SSC) | H |
| Chip Breaker Type | CR | Cutting Edge Count (CEDC) | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.013
