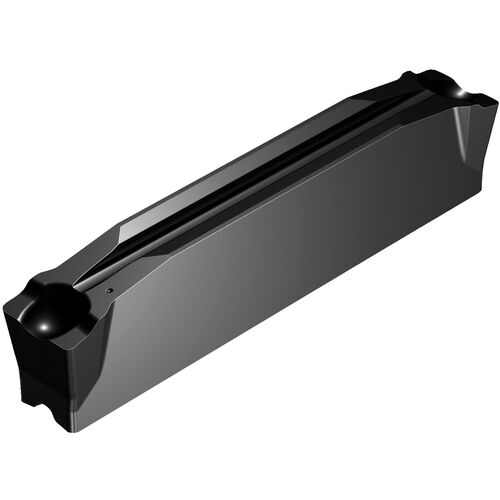

C2I-J2N-0500-0004-GL3115
Parting Off Insert; 5 mm CW × 4.35 mm Thickness × 0.4 mm Corner Radius ; Neutral ; Carbide ; TICN+AL2O3 ; 3115 ; Series C2I-x2N-GL
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 5 mm | Insert Size | J2 |
| Corner Radius (RE) | 0.4 mm | Insert Style | C2I |
| Insert Thickness (S) | 4.35 mm | Mounting Style | Clamp |
| Cutting Depth Maximum (CDX) | 23.74 mm | Number of Cutting Edges | 2 |
| Cutting Edge Material | Carbide | Series/List # | C2I-x2N-GL |
| Coating | TICN+AL2O3 | Tool Type | Cut-Off Insert |
| Grade | 3115 | Measurement Type | Mectric |
| Cutting Direction (HAND) | Neutral | Clearance Angle Major (AN) | 7 Degrees |
| Application | Parting, Grooving | Body Material | Carbide |
| Applicable Material | | Steel | Cast Iron | | Insert Seat Size Code (SSC) | J |
| Chip Breaker Type | GL | Cutting Edge Count (CEDC) | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.013
