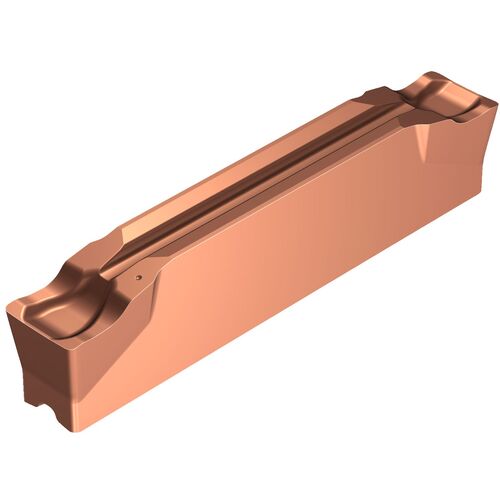

C2I-J2N-0500-0004-CR1225
Parting Off Insert; 5 mm CW × 4.35 mm Thickness × 0.4 mm Corner Radius ; Neutral ; Carbide ; TIALN+TIALSIN+TISIN ; 1225 ; Series C2I-x2N-CR
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 5 mm | Insert Size | J2 |
| Corner Radius (RE) | 0.4 mm | Insert Style | C2I |
| Insert Thickness (S) | 4.35 mm | Mounting Style | Clamp |
| Cutting Depth Maximum (CDX) | 23.36 mm | Number of Cutting Edges | 2 |
| Cutting Edge Material | Carbide | Series/List # | C2I-x2N-CR |
| Coating | TIALN+TIALSIN+TISIN | Tool Type | Cut-Off Insert |
| Grade | 1225 | Measurement Type | Mectric |
| Cutting Direction (HAND) | Neutral | Clearance Angle Major (AN) | 7 Degrees |
| Application | Parting, Grooving | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Non-ferrous Metal | Super-alloys / Titanium | | Insert Seat Size Code (SSC) | J |
| Chip Breaker Type | CR | Cutting Edge Count (CEDC) | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.017
