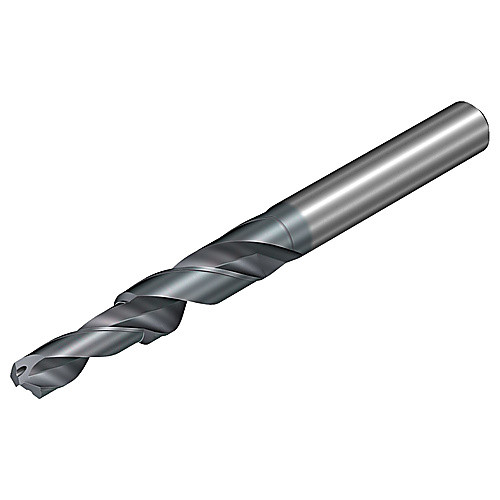

462.2-0450-014A1-XM X2BM
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 4.5 mm | Grade | X2BM |
| Cutting Diameter Minimum (DCN) | 4.5 mm | Coolant Supply Property (CSP) | Internal |
| Cutting Diameter Maximum (DCX) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Non-ferrous Metal | Super-alloys / Titanium | Hard Material | |
| Length Chip Flute (LCF) | 28 mm | Application | Step Drilling |
| Usable Length (LU) | 14.755 mm | Flute Type | Spiral |
| Shank Size (SS) | 6 mm | Measurement Type | Metric |
| Overall Length (OAL) | 66 mm | Shank Length (LS) | 36 mm |
| Point Angle (SIG) | 151 Degrees | Shank Standard | DIN6535-HA |
| Flute Count (NOF) | 2 | Shank Type | Cylindrical |
| Flute Helix Angle (FHA) | 32.14 mm | Step Diameter Length (SDL) | 13.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Tool Type | Step and chamfer drill |
| Number of Steps | 2 | Series/List # | 462 |
| Cutting Edge Material | Solid Carbide | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlCrSiN | Body Material | Solid Carbide |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.082
