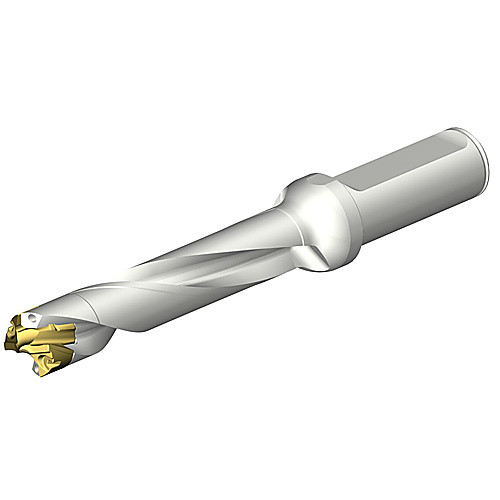

DE10-D1700-170LX19-5
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.7047″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3.6212″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical | Cutting Item Count (CICT) | 35 |
| Application | Drilling | Measurement Type | Metric |
| Tool Type | Indexable Insert Drill | Helix Angle | 64 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.75″ | Master Insert Identification (MIID) | DE10-1790-170-M5 |
| Insert Seat Size Code (SSC) | 170 | Flute Type | Differential |
| Cutting Diameter Minimum (DCN) | 0.6692″ | Point Length (PL) | 0.0976″ |
| Cutting Diameter Maximum (DCX) | 0.7082″ | Series/List # | DE10 |
| Functional Length (LF) | 4.2055″ | Insert Style | DE10 |
| Overall Length (OAL) | 6.2716″ | Body Material | Steel |
| Shank Length (LS) | 1.9685″ | Connection Code Machine Side (CCMS) | 3/4″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.489
