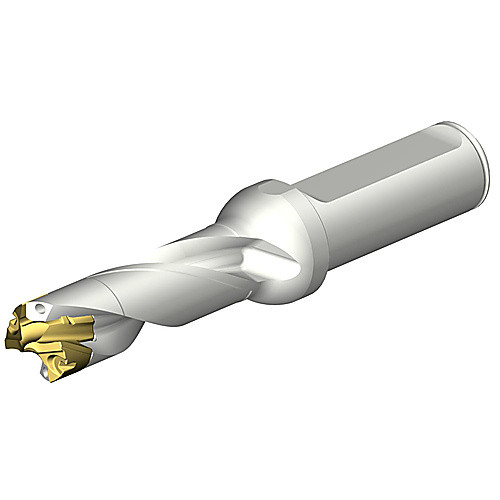

DE10-D1700-170LX19-3
Drill; 0.7047″ Dia. × 0.6692″ Min. Dia. × 0.7082″ Max. Dia. × 0.75″ Shank Dia. × 4.8622″ OAL × 2.2118″ LU × 1.9685″ Shank Length ; Cylindrical Shank ; Series DE10
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.7047″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.2118″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical | Cutting Item Count (CICT) | 34 |
| Application | Drilling | Measurement Type | Metric |
| Tool Type | Indexable Insert Drill | Helix Angle | 63 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.75″ | Master Insert Identification (MIID) | DE10-1790-170-M5 |
| Insert Seat Size Code (SSC) | 170 | Flute Type | Spiral |
| Cutting Diameter Minimum (DCN) | 0.6692″ | Point Length (PL) | 0.0976″ |
| Cutting Diameter Maximum (DCX) | 0.7082″ | Series/List # | DE10 |
| Functional Length (LF) | 2.796″ | Insert Style | DE10 |
| Overall Length (OAL) | 4.8622″ | Body Material | Steel |
| Shank Length (LS) | 1.9685″ | Connection Code Machine Side (CCMS) | 3/4″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.414
