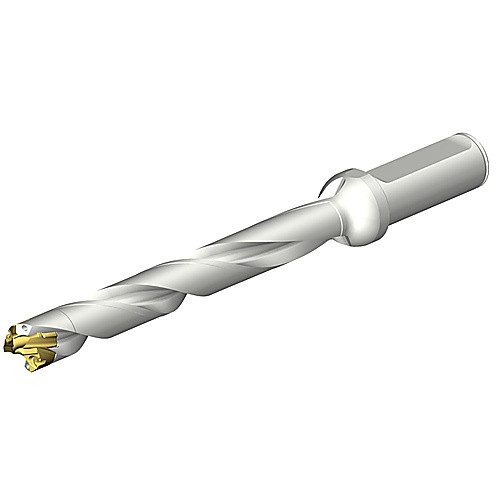

DE10-D1600-160LX19-8
Drill; 0.6654″ Dia. × 0.6299″ Min. Dia. × 0.6688″ Max. Dia. × 0.75″ Shank Dia. × 8.0669″ OAL × 5.4149″ LU × 1.9685″ Shank Length ; Cylindrical Shank ; Series DE10
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.6654″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 5.4149″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical | Cutting Item Count (CICT) | 33 |
| Application | Drilling | Measurement Type | Metric |
| Tool Type | Indexable Insert Drill | Helix Angle | 62 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.75″ | Master Insert Identification (MIID) | DE10-1690-160-M5 |
| Insert Seat Size Code (SSC) | 160 | Flute Type | Differential |
| Cutting Diameter Minimum (DCN) | 0.6299″ | Point Length (PL) | 0.0921″ |
| Cutting Diameter Maximum (DCX) | 0.6688″ | Series/List # | DE10 |
| Functional Length (LF) | 6.0063″ | Insert Style | DE10 |
| Overall Length (OAL) | 8.0669″ | Body Material | Steel |
| Shank Length (LS) | 1.9685″ | Connection Code Machine Side (CCMS) | 3/4″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.545
