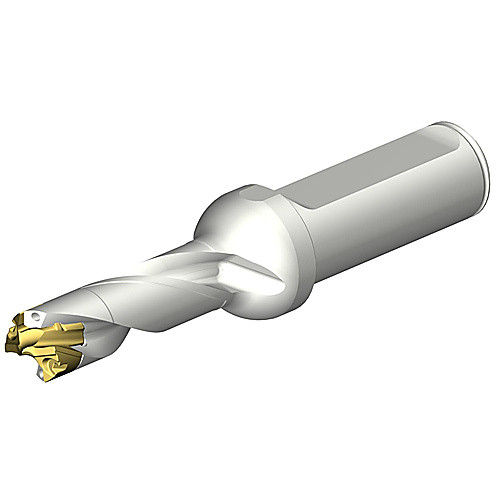

DE10-D1400-140LX19-3
Drill; 0.5866″ Dia. × 0.5511″ Min. Dia. × 0.5901″ Max. Dia. × 0.75″ Shank Dia. × 4.496″ OAL × 1.8401″ LU × 1.9685″ Shank Length ; Cylindrical Shank ; Series DE10
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.5866″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.8401″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical | Cutting Item Count (CICT) | 25 |
| Application | Drilling | Measurement Type | Metric |
| Tool Type | Indexable Insert Drill | Helix Angle | 54 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.75″ | Master Insert Identification (MIID) | DE10-1490-140-M5 |
| Insert Seat Size Code (SSC) | 140 | Flute Type | Spiral |
| Cutting Diameter Minimum (DCN) | 0.5511″ | Point Length (PL) | 0.0803″ |
| Cutting Diameter Maximum (DCX) | 0.5901″ | Series/List # | DE10 |
| Functional Length (LF) | 2.4472″ | Insert Style | DE10 |
| Overall Length (OAL) | 4.496″ | Body Material | Steel |
| Shank Length (LS) | 1.9685″ | Connection Code Machine Side (CCMS) | 3/4″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.375
