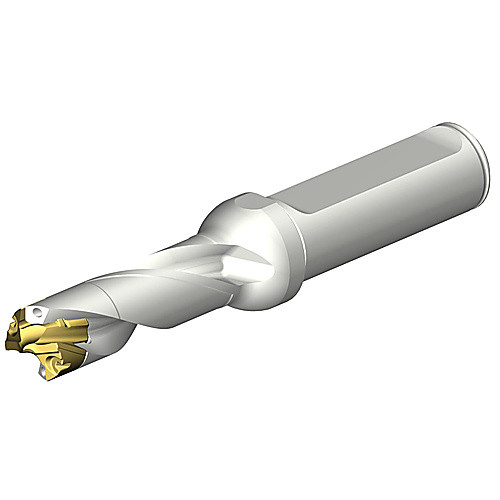

DE10-D1350-135LX16-3
Drill; 0.5472″ Dia. × 0.5314″ Min. Dia. × 0.5507″ Max. Dia. × 0.625″ Shank Dia. × 4.1574″ OAL × 1.7173″ LU × 1.8898″ Shank Length ; Cylindrical Shank ; Series DE10
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.5472″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.7173″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical | Cutting Item Count (CICT) | 22 |
| Application | Drilling | Measurement Type | Metric |
| Tool Type | Indexable Insert Drill | Helix Angle | 51 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.625″ | Master Insert Identification (MIID) | DE10-1390-135-M5 |
| Insert Seat Size Code (SSC) | 135 | Flute Type | Spiral |
| Cutting Diameter Minimum (DCN) | 0.5314″ | Point Length (PL) | 0.0755″ |
| Cutting Diameter Maximum (DCX) | 0.5507″ | Series/List # | DE10 |
| Functional Length (LF) | 2.1921″ | Insert Style | DE10 |
| Overall Length (OAL) | 4.1574″ | Body Material | Steel |
| Shank Length (LS) | 1.8898″ | Connection Code Machine Side (CCMS) | 5/8″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.24
