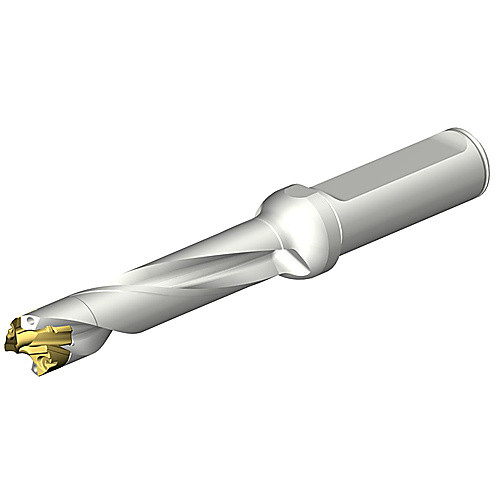

DE10-D1350-135L16-5
Drill; 13.9 mm Dia. × 13.5 mm Min. Dia. × 13.99 mm Max. Dia. × 16 mm Shank Dia. × 133.4 mm OAL × 71.42 mm LU × 48 mm Shank Length ; Cylindrical Shank ; Series DE10
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 13.9 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 71.42 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical | Cutting Item Count (CICT) | 5 |
| Application | Drilling | Measurement Type | Metric |
| Tool Type | Indexable Insert Drill | Helix Angle | 34 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Master Insert Identification (MIID) | DE10-1390-135-M5 |
| Insert Seat Size Code (SSC) | 135 | Flute Type | Differential |
| Cutting Diameter Minimum (DCN) | 13.5 mm | Point Length (PL) | 1.92 mm |
| Cutting Diameter Maximum (DCX) | 13.99 mm | Series/List # | DE10 |
| Functional Length (LF) | 83.48 mm | Insert Style | DE10 |
| Overall Length (OAL) | 133.4 mm | Body Material | Steel |
| Shank Length (LS) | 48 mm | Connection Code Machine Side (CCMS) | 16 mm |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.28
