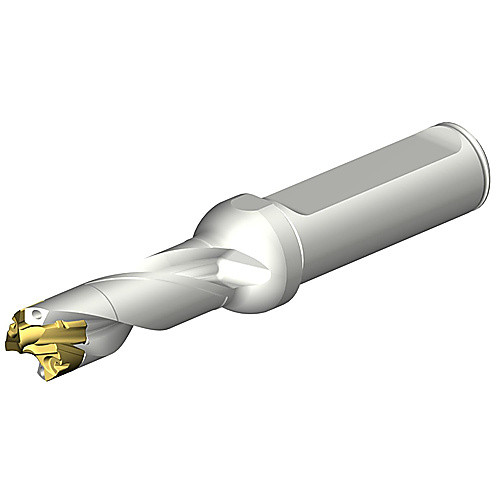

DE10-D1300-130L16-3
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 13.4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 42.33 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical | Cutting Item Count (CICT) | 1 |
| Application | Drilling | Measurement Type | Metric |
| Tool Type | Indexable Insert Drill | Helix Angle | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Master Insert Identification (MIID) | DE10-1340-130-M5 |
| Insert Seat Size Code (SSC) | 130 | Flute Type | Spiral |
| Cutting Diameter Minimum (DCN) | 13 mm | Point Length (PL) | 1.86 mm |
| Cutting Diameter Maximum (DCX) | 13.49 mm | Series/List # | DE10 |
| Functional Length (LF) | 54.14 mm | Insert Style | DE10 |
| Overall Length (OAL) | 104 mm | Body Material | Steel |
| Shank Length (LS) | 48 mm | Connection Code Machine Side (CCMS) | 16 mm |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.238
