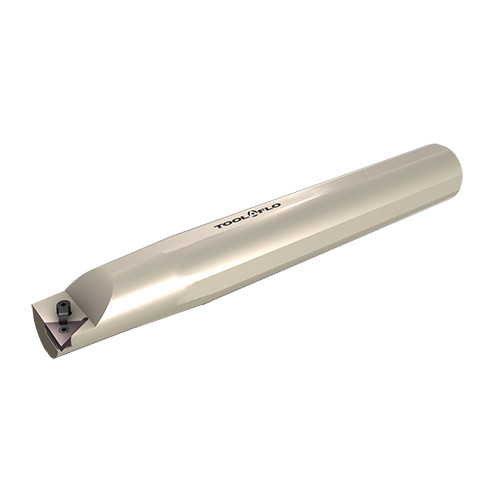

LNFR 50M-53 API
| Connection Diameter Machine Side (DCONMS) | 50 mm | Functional Width (WF) | 27.6 mm |
| Minimum Bore Diameter (DMIN) | 55.2 mm | Insert to Shank Reference | 27.6 mm |
| Head Length (LH) | 114.3 mm | Body Material | Steel |
| Overall Length (OAL) | 406.4 mm | Cutting Depth Maximum (CDX) | 5.8 mm |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Application | | Int Threading Laydown | | Reduced Body Diameter Length (LDRED) | 114.3 mm |
Product Features
| Family Description | Internal Right Hand Threading Bars for L# Laydown Inserts with API Forms | Country of Origin | USA |
Shipping Info
Package Weight
0.000
