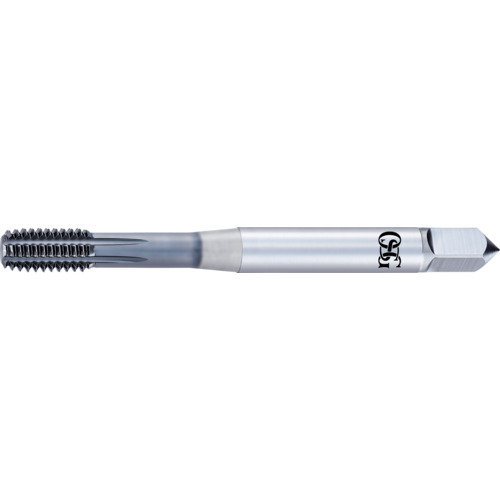

5/16-24 H5 2.5P A BRAND A-XPF VI
Forming Tap; 5/16″ - 24 ; 3.544″ OAL × 1.378″ LU × 0.318″ Shank Dia. ; VC-10 ; VI ; H5 ; Series 26250
| Tool Type | High Performance Tap | Threads per Inch (TPI) | 24 |
| Thread Diameter Size (TDZ) | 5/16″ | Chamfer | 2.5P |
| Overall Length (OAL) | 3.544″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.556″ | End Shape | Modified Bottom |
| Usable Length (LU) | 1.378″ | Cutting Edge Material | VC-10 |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | H5 | Series/List # | 26250 |
| Thread Standard | UNF | Product_Description | 5/16-24 H5 2.5P A BRAND A-XPF VI |
| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Hard Materials | | Thread Size | 5/16-24 |
| Coating | VI | Body Material | VC-10 |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.072
