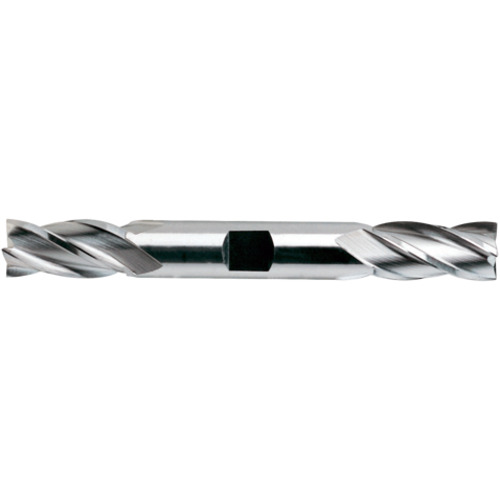

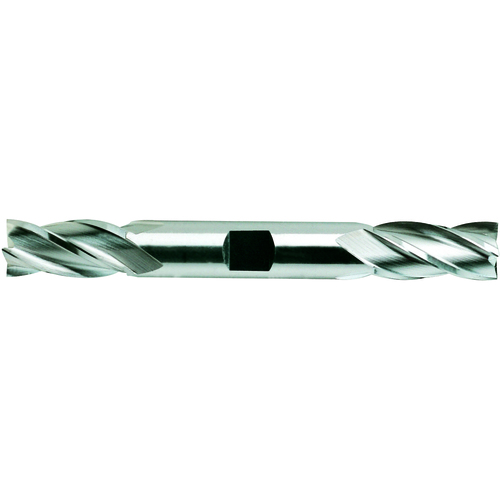

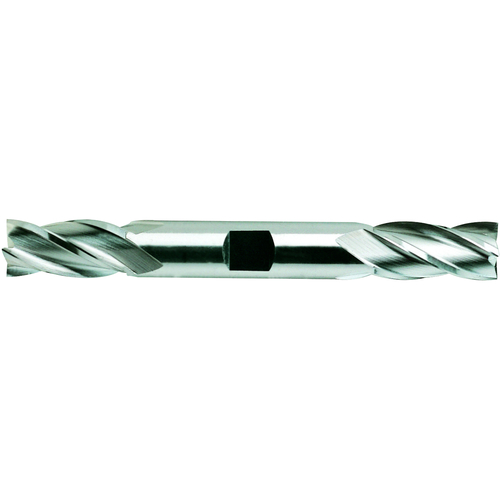

Square End Mill; 3/16″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 3-1/4″ OAL ; 4 FL ; Carbide ; YG Tylon F ; Series E5024
SQ End Mill; 3/16″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 3-1/4″ OAL ; 4 FL ; Carbide ; TiAlN ; Series E5024
| Cutting Diameter (DC) | 3/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 1/2″ | Decimal Equivalent | 0.1875″ |
| Overall Length (OAL) | 3-1/4″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Series/List # | E5024 |
| Coating | TiAlN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Single / Double End | Double End |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Weldon |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.142
