T35-SS02E05-20X1.5-65R-K
Straight Flute Tap; 0.7874″ × 1.50 mm - 16.93 ; 4.9213″ OAL ; 4 FL ; HSS-E-PM ; TiAlSiN ; 6HX ; Series T35
Additional Tariff Surcharge of 8 %

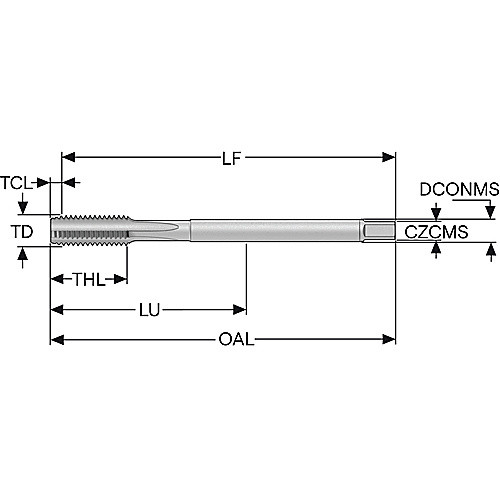

| Thread Diameter Size (TDZ) | 0.7874″ | Chamfer | 1.5P-2P |
| Thread Pitch (TP) | 1.50 mm | Coating | TiAlSiN |
| Threads per Inch (TPI) | 16.93 | Drive Size (DRVS) | 16 × 12 mm |
| Thread Standard | Metric Fine | Tapping Prehole Diameter (Pre-hole) | 0.7283″ |
| Overall Length (OAL) | 4.9213″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.9449″ | End Shape | Bottoming |
| Usable Length (LU) | 3.1496″ | Shank Type | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 0.6299″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Application | Through-Hole Threading | Blind Hole Threading | Square Size | 16 × 12 mm |
| Applicable Material | Cast Iron | Measurement Type | Inch |
| Cutting Edge Material | HSS-E-PM | Series/List # | T35 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M20 × 1.5 |
| Tool Type | Straight Flute Tap | Thread Form Type (THFT) | MF |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.4
