T35-SS02E03-8X1-65R-K
Straight Flute Tap; 0.315″ × 1 mm - 25.4 ; 3.5433″ OAL ; 3 FL ; HSS-E-PM ; TiAlSiN ; 6HX ; Series T35
Additional Tariff Surcharge of 8 %

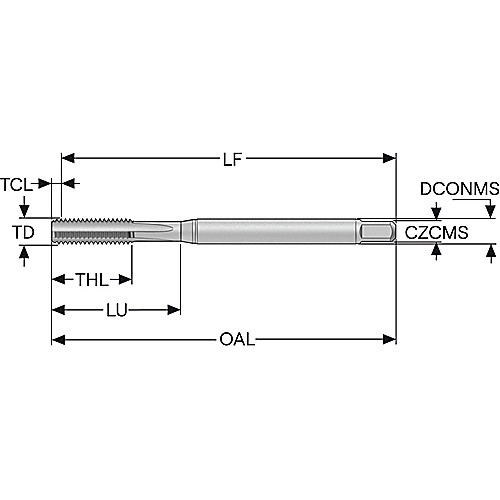

| Thread Diameter Size (TDZ) | 0.315″ | Chamfer | 1.5P-2P |
| Thread Pitch (TP) | 1 mm | Coating | TiAlSiN |
| Threads per Inch (TPI) | 25.4 | Drive Size (DRVS) | 8 × 6.20 mm |
| Thread Standard | Metric Fine | Tapping Prehole Diameter (Pre-hole) | 0.2756″ |
| Overall Length (OAL) | 3.5433″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.7874″ | End Shape | Bottoming |
| Usable Length (LU) | 1.378″ | Shank Type | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Application | Through-Hole Threading | Blind Hole Threading | Square Size | 8 × 6.20 mm |
| Applicable Material | Cast Iron | Measurement Type | Inch |
| Cutting Edge Material | HSS-E-PM | Series/List # | T35 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M8 × 1 |
| Tool Type | Straight Flute Tap | Thread Form Type (THFT) | MF |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.06
