T34-PC01B06-16X2-65R
Spiral Point Tap; 0.6299″ × 2 mm - 12.7 ; 4.3307″ OAL ; 3 FL ; HSS-E-PM ; TiN | TiCN ; 6HX ; Series T34
Additional Tariff Surcharge of 8 %

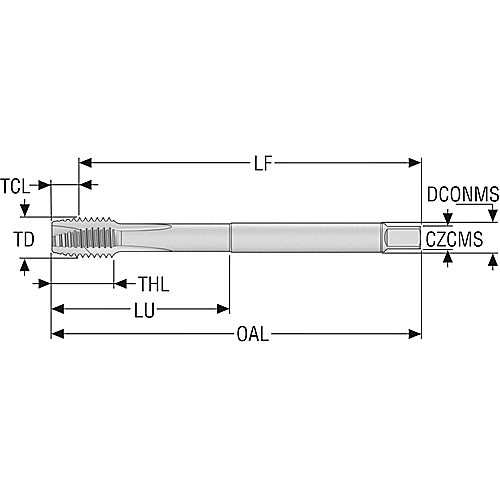

| Thread Standard | Metric | Application | Through-Hole Threading |
| Thread Size | M16 × 2 | Connection Diameter Machine Side (DCONMS) | 0.4724″ |
| Thread Diameter Size (TDZ) | 0.6299″ | Thread Cutting Part Length (THL) | 0.7874″ |
| Threads per Inch (TPI) | 12.7 | Tapping Prehole Diameter (Pre-hole) | 0.5512″ |
| Thread Pitch (TP) | 2 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 6HX | End Shape | Plug |
| Usable Length (LU) | 2.6772″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 4.3307″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | TiN | TiCN | Length Group | 2.5xD |
| Flute Count (NOF) | 3 | Square Size | 12.00 × 9 mm |
| Cutting Edge Material | HSS-E-PM | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T34 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Non-Ferrous Metal | Superalloy | Thread Form Type (THFT) | M |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.21
