T35-PS01B06-6X1-63R-P
Spiral Point Tap; 0.2362″ × 1 mm - 25.4 ; 3.2441″ OAL ; 3 FL ; HSS-E-PM ; Multilayer ; 6H ; Series T35
Additional Tariff Surcharge of 8 %

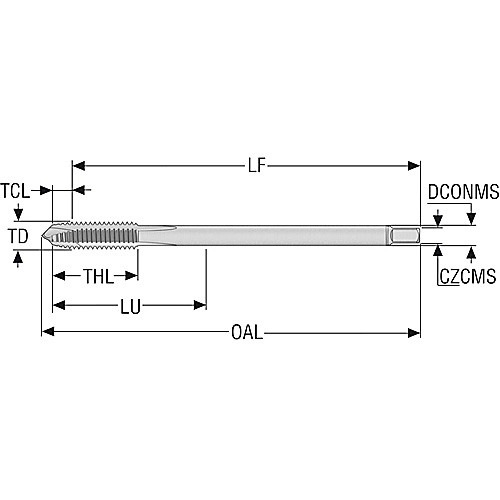

| Thread Standard | Metric | Application | Through-Hole Threading |
| Thread Size | M6 × 1 | Connection Diameter Machine Side (DCONMS) | 0.1772″ |
| Thread Diameter Size (TDZ) | 0.2362″ | Thread Cutting Part Length (THL) | 0.7087″ |
| Threads per Inch (TPI) | 25.4 | Tapping Prehole Diameter (Pre-hole) | 0.1969″ |
| Thread Pitch (TP) | 1 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 6H | End Shape | Plug |
| Usable Length (LU) | 2.4016″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 3.2441″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | Multilayer | Length Group | 3xD |
| Flute Count (NOF) | 3 | Square Size | 4.50 × 3.40 mm |
| Cutting Edge Material | HSS-E-PM | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T35 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Thread Form Type (THFT) | M |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.03
