T35-PS01B06-5X0.8-63R-P
Spiral Point Tap; 0.1969″ × 0.80 mm - 31.75 ; 2.8346″ OAL ; 3 FL ; HSS-E-PM ; Multilayer ; 6H ; Series T35
Additional Tariff Surcharge of 8 %

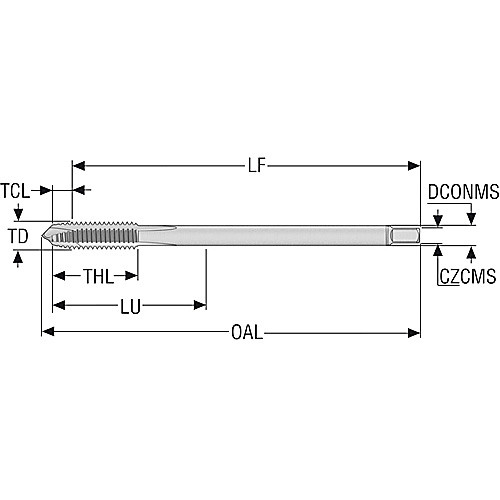

| Thread Standard | Metric | Application | Through-Hole Threading |
| Thread Size | M5 × 0.8 | Connection Diameter Machine Side (DCONMS) | 0.1378″ |
| Thread Diameter Size (TDZ) | 0.1969″ | Thread Cutting Part Length (THL) | 0.5512″ |
| Threads per Inch (TPI) | 31.75 | Tapping Prehole Diameter (Pre-hole) | 0.1654″ |
| Thread Pitch (TP) | 0.80 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 6H | End Shape | Plug |
| Usable Length (LU) | 2.0079″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 2.8346″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | Multilayer | Length Group | 3xD |
| Flute Count (NOF) | 3 | Square Size | 3.50 × 2.70 mm |
| Cutting Edge Material | HSS-E-PM | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T35 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Thread Form Type (THFT) | M |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.03
