T35-R45U01C03-5X0.8-63R-N
Spiral Flute Tap; 0.1969″ × 0.80 mm - 31.75 ; 2.8346″ OAL ; 2 FL ; HSS-E ; Uncoated ; 6H ; Series T35
Additional Tariff Surcharge of 8 %

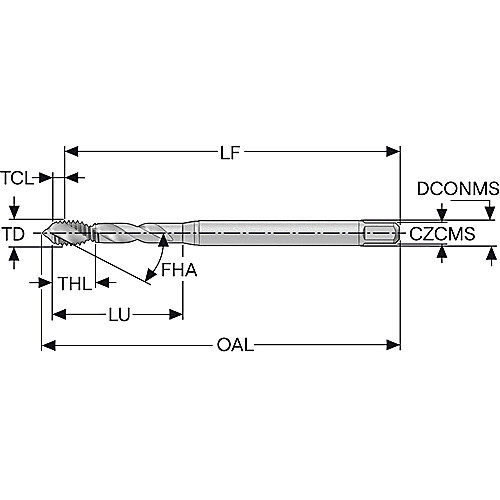

| Thread Diameter Size (TDZ) | M5 | Coating | Uncoated |
| Thread Pitch (TP) | 0.8 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 32 | Flute Type | Spiral |
| Thread Standard | Metric | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 2.8346″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 0.315″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 0.9843″ | Square Size | 6.00 × 4.90 mm |
| Connection Diameter Machine Side (DCONMS) | 0.2362″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Tapping Prehole Diameter (Pre-hole) | 0.1654″ |
| Flute Helix Angle (FHA) | 45 | ToolTypeName | Spiral Flute |
| Cutting Length | 0.9843″ | Thread Form Type (THFT) | M |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | T35 |
| Cutting Edge Material | HSSE | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 6H | Drive Size (DRVS) | 6.00X4.90 mm |
| Tool Type | General Purpose | Thread Size | M5 × 0.8 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.02
