T30-R40X01C06-4X0.7-63R
Spiral Flute Tap; 0.1575″ × 0.70 mm - 36.29 ; 2.5394″ OAL ; 3 FL ; HSS-E-PM ; Vaporisiert ; 6H ; Series T30
Additional Tariff Surcharge of 8 %

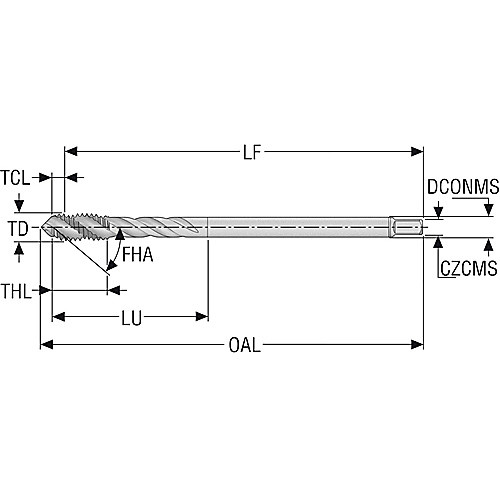

| Thread Diameter Size (TDZ) | M4 | Coating | Vaporisiert |
| Thread Pitch (TP) | 0.7 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 36 | Flute Type | Spiral |
| Thread Standard | Metric | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 2.5394″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 0.315″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 1.7323″ | Square Size | 2.80 × 2.10 mm |
| Connection Diameter Machine Side (DCONMS) | 0.1102″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Tapping Prehole Diameter (Pre-hole) | 0.1299″ |
| Flute Helix Angle (FHA) | 40 | ToolTypeName | Spiral Flute |
| Cutting Length | 1.7323″ | Thread Form Type (THFT) | M |
| Applicable Material | | General Purpose | | Series/List # | T30 |
| Cutting Edge Material | HSSE-PM | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 6H | Drive Size (DRVS) | 2.80X2.10 mm |
| Tool Type | General Purpose | Thread Size | M4 × 0.7 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.01
