T30-R40U02C05-5X0.5-63R
Spiral Flute Tap; 0.1969″ × 0.50 mm - 50.8 ; 2.8346″ OAL ; 3 FL ; HSS-E ; Uncoated ; 6H ; Series T30
Additional Tariff Surcharge of 8 %

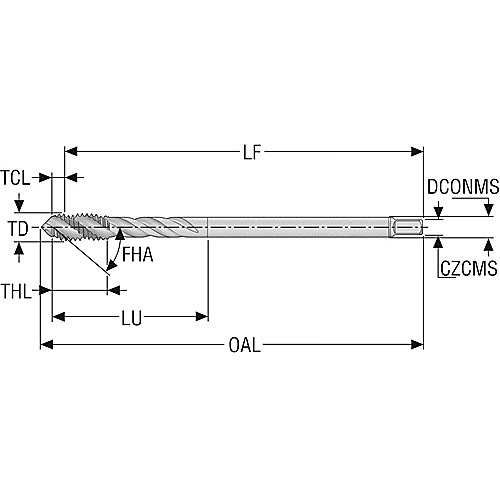

| Thread Diameter Size (TDZ) | M5 | Coating | Uncoated |
| Thread Pitch (TP) | 0.5 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 51 | Flute Type | Spiral |
| Thread Standard | Metric | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 2.8346″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 0.3937″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 2.0079″ | Square Size | 3.50 × 2.70 mm |
| Connection Diameter Machine Side (DCONMS) | 0.1378″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Tapping Prehole Diameter (Pre-hole) | 0.1772″ |
| Flute Helix Angle (FHA) | 40 | ToolTypeName | Spiral Flute |
| Cutting Length | 2.0079″ | Thread Form Type (THFT) | MF |
| Applicable Material | | General Purpose | | Series/List # | T30 |
| Cutting Edge Material | HSSE | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 6H | Drive Size (DRVS) | 3.50X2.70 mm |
| Tool Type | General Purpose | Thread Size | M5 × 0.5 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.02
