T30-PU02B05-4.5X0.5-63R
Spiral Point Tap; 0.1575″ × 0.50 mm - 50.8 ; 2.8346″ OAL ; 3 FL ; HSS-E ; Uncoated ; 6H ; Series T30
Additional Tariff Surcharge of 8 %

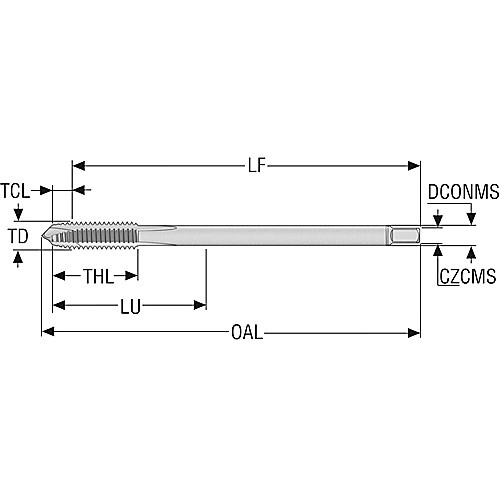

| Thread Standard | Metric Fine | Application | Through-Hole Threading |
| Thread Size | M4.5 × 0.5 | Connection Diameter Machine Side (DCONMS) | 0.1378″ |
| Thread Diameter Size (TDZ) | 0.1575″ | Thread Cutting Part Length (THL) | 0.5512″ |
| Threads per Inch (TPI) | 50.8 | Tapping Prehole Diameter (Pre-hole) | 0.1575″ |
| Thread Pitch (TP) | 0.50 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 6H | End Shape | Plug |
| Usable Length (LU) | 2.0079″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 2.8346″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Length Group | 3xD |
| Flute Count (NOF) | 3 | Square Size | 3.50 × 2.70 mm |
| Cutting Edge Material | HSS-E | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T30 |
| Applicable Material | Steel | Non-Ferrous Metal | Thread Form Type (THFT) | MF |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.01
