T30-SU33C09-1/2-14-R
Straight Flute Tap; 0.825″ × 1.81 mm - 14 ; 4.9213″ OAL ; 5 FL ; HSS-E ; Uncoated ; NORMAL ; Series T30
Additional Tariff Surcharge of 8 %

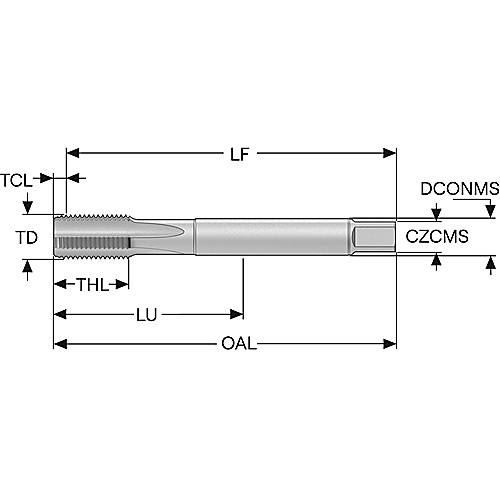

| Thread Diameter Size (TDZ) | 0.825″ | Chamfer | 2P-3P |
| Thread Pitch (TP) | 1.81 mm | Coating | Uncoated |
| Threads per Inch (TPI) | 14 | Drive Size (DRVS) | 16 × 12 mm |
| Thread Standard | BSPT | Tapping Prehole Diameter (Pre-hole) | 0.7008″ |
| Overall Length (OAL) | 4.9213″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1.0236″ | End Shape | Semi-Bottoming |
| Usable Length (LU) | 3.1496″ | Shank Type | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 0.6299″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Application | Through-Hole Threading | Blind Hole Threading | Square Size | 16 × 12 mm |
| Applicable Material | Steel | Non-Ferrous Metal | Measurement Type | Inch |
| Cutting Edge Material | HSS-E | Series/List # | T30 |
| Thread Tolerance Class (TCTR) | NORMAL | Thread Size | 1/2″ - 14 |
| Tool Type | Straight Flute Tap | Thread Form Type (THFT) | Rc |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.41
