T30-SU32C09-1/8-28-R
Straight Flute Tap; 0.383″ × 0.91 mm - 28 ; 3.5433″ OAL ; 3 FL ; HSS-E ; Uncoated ; NORMAL ; Series T30
Additional Tariff Surcharge of 8 %

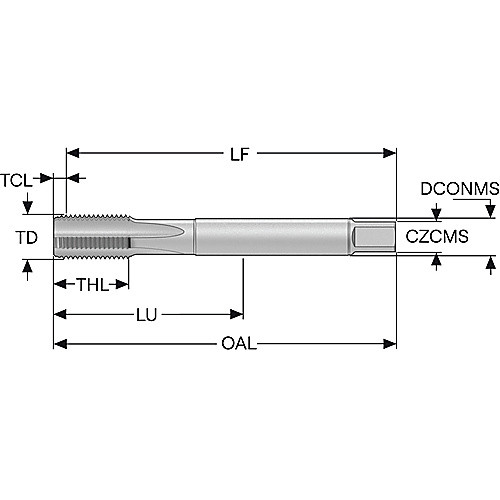

| Thread Diameter Size (TDZ) | 0.383″ | Chamfer | 2P-3P |
| Thread Pitch (TP) | 0.91 mm | Coating | Uncoated |
| Threads per Inch (TPI) | 28 | Drive Size (DRVS) | 7 × 5.50 mm |
| Thread Standard | BSPP | Tapping Prehole Diameter (Pre-hole) | 0.3386″ |
| Overall Length (OAL) | 3.5433″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.7087″ | End Shape | Semi-Bottoming |
| Usable Length (LU) | 2.6378″ | Shank Type | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 0.2756″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Application | Through-Hole Threading | Blind Hole Threading | Square Size | 7 × 5.50 mm |
| Applicable Material | Steel | Non-Ferrous Metal | Measurement Type | Inch |
| Cutting Edge Material | HSS-E | Series/List # | T30 |
| Thread Tolerance Class (TCTR) | NORMAL | Thread Size | 1/8″ - 28 |
| Tool Type | Straight Flute Tap | Thread Form Type (THFT) | Rp |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.06
