T32-PH01B03-10X1.5-63R
Spiral Point Tap; 0.3937″ × 1.50 mm - 16.93 ; 4.0079″ OAL ; 3 FL ; HSS-E ; TiAlN/WC/C ; 6H ; Series T32
Additional Tariff Surcharge of 8 %

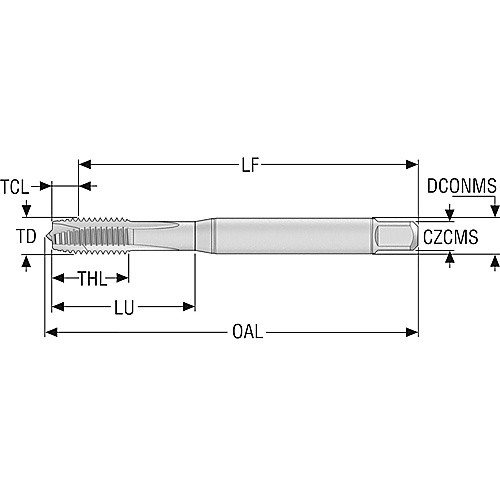

| Thread Standard | Metric | Application | Through-Hole Threading |
| Thread Size | M10 × 1.5 | Connection Diameter Machine Side (DCONMS) | 0.3937″ |
| Thread Diameter Size (TDZ) | 0.3937″ | Thread Cutting Part Length (THL) | 0.7874″ |
| Threads per Inch (TPI) | 16.93 | Tapping Prehole Diameter (Pre-hole) | 0.3346″ |
| Thread Pitch (TP) | 1.50 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 6H | End Shape | Plug |
| Usable Length (LU) | 1.5354″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 4.0079″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | TiAlN/WC/C | Length Group | 3xD |
| Flute Count (NOF) | 3 | Square Size | 10.00 × 8 mm |
| Cutting Edge Material | HSS-E | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T32 |
| Applicable Material | Stainless Steel | Steel | Cast Iron | Non-Ferrous Metal | Thread Form Type (THFT) | M |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.11
