T30-PU09B03-3/8-24-21R
Spiral Point Tap; 0.375″ × 1.06 mm - 24 ; 3.5433″ OAL ; 3 FL ; HSS-E ; Uncoated ; 2B ; Series T30
Additional Tariff Surcharge of 8 %

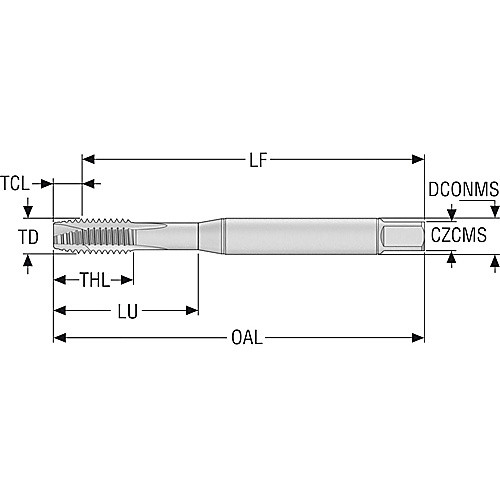

| Thread Standard | UNF | Application | Through-Hole Threading |
| Thread Size | 3/8″ - 24 | Connection Diameter Machine Side (DCONMS) | 0.3937″ |
| Thread Diameter Size (TDZ) | 0.375″ | Thread Cutting Part Length (THL) | 0.7874″ |
| Threads per Inch (TPI) | 24 | Tapping Prehole Diameter (Pre-hole) | 0.3346″ |
| Thread Pitch (TP) | 1.06 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 2B | End Shape | Plug |
| Usable Length (LU) | 1.378″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 3.5433″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Length Group | 3xD |
| Flute Count (NOF) | 3 | Square Size | 10.00 × 8 mm |
| Cutting Edge Material | HSS-E | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T30 |
| Applicable Material | Steel | Non-Ferrous Metal | Thread Form Type (THFT) | UNF |
Product Features
| Country of Origin | Poland |
