ST5551.750D4R030.0Z5C
SQ End Mill; 0.75″ Dia. × 2.25″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 0.03″ RE ; 5 FL ; 2.25″ LBS ; Solid Carbide ; SIRON-A ; Series ST5551

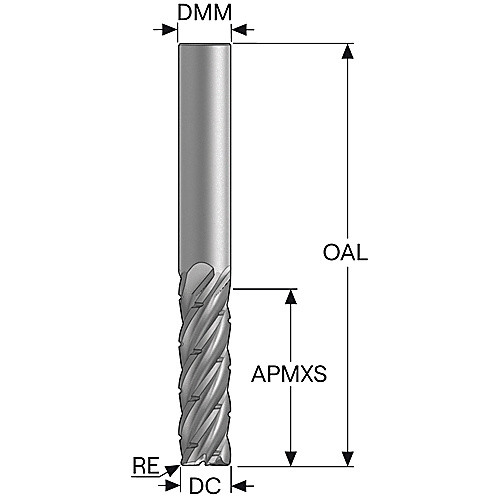

| Cutting Diameter (DC) | 0.75″ | Flute Type | Helical |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Coolant Supply Property (CSP) | No |
| Depth of Cut Maximum (APMX) | 2.25″ | Shank Standard | ANSI B94.19 |
| Overall Length (OAL) | 5″ | Body Material | Solid Carbide |
| Cutting Edge Material | Solid Carbide | Decimal Equivalent | 0.75″ |
| Coating | SIRON-A | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | ST5551 |
| Flute Helix Angle (FHA) | 40 | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Shank Type | Cylindrical | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 2.25″ | Center Cutting | Yes |
| Applicable Material | | Steel | Cast Iron | | Tool Cutting Edge Angle (KAPR) | 90 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Cutting Diameter Tolerance | -0.0020/" |
| Tool Type | End Mill | Shank Diameter Tolerance (TCDMM) | ANSI B94.19 |
| Length Group | Long |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.08
