ST5551-.750E4S.0Z5 SIRA
SQ End Mill; 0.75″ Dia. × 1.5″ LOC × 0.75″ Shank Dia. × 5″ OAL ; 5 FL ; Solid Carbide ; SIRON-A ; Series ST5551

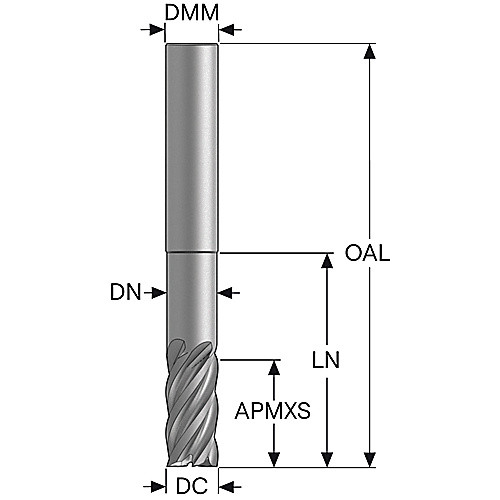

| Cutting Diameter (DC) | 0.75″ | Tool Type | End Mill |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Length Group | Long |
| Depth of Cut Maximum (APMX) | 1.5″ | Flute Type | Helical |
| Overall Length (OAL) | 5″ | Coolant Supply Property (CSP) | No |
| Cutting Edge Material | Solid Carbide | Shank Standard | ANSI B94.19 |
| Coating | SIRON-A | Body Material | Solid Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 40 | Measurement Type | Inch |
| Shank Type | Cylindrical | Series/List # | ST5551 |
| End Shape | Square End | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 3″ | Single / Double End | Single End |
| Applicable Material | | Steel | Cast Iron | | Center Cutting | Yes |
| Neck Diameter (DN) | 0.72″ | Tool Cutting Edge Angle (KAPR) | 90 |
| Neck Length (LN) | 3″ | Cutting Diameter Tolerance | -0.0020/" |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Shank Diameter Tolerance (TCDMM) | ANSI B94.19 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.03
