ST5541-050F3C.0Z4 SIRA
SQ End Mill; 5 mm Dia. × 15 mm LOC × 6 mm Shank Dia. × 58 mm OAL ; 4 FL ; Solid Carbide ; SIRON-A ; Series ST5541

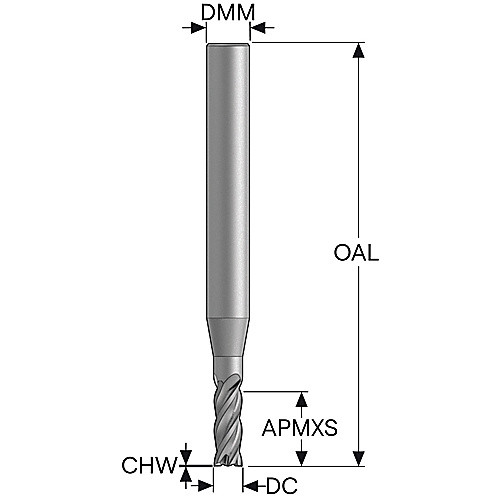

| Cutting Diameter (DC) | 5 mm | Length Group | Regular |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Type | Helical |
| Depth of Cut Maximum (APMX) | 15 mm | Coolant Supply Property (CSP) | No |
| Overall Length (OAL) | 58 mm | Shank Standard | h5 |
| Cutting Edge Material | Solid Carbide | Body Material | Solid Carbide |
| Coating | SIRON-A | Decimal Equivalent | 5 mm |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 | Series/List # | ST5541 |
| Shank Type | Cylindrical | Corner Radius (RE) / Chamfer Width (CHW) | 0.06 mm |
| End Shape | Corner Chamfer | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 20.33 mm | Single / Double End | Single End |
| Applicable Material | | Steel | Cast Iron | | Center Cutting | Yes |
| Neck Diameter (DN) | 5.13 mm | Tool Cutting Edge Angle (KAPR) | 90 |
| Neck Length (LN) | 20.33 mm | Cutting Diameter Tolerance | -0.03/-0.02 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Shank Diameter Tolerance (TCDMM) | h5 |
| Tool Type | End Mill |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.01
