ST5341-030F2B.0Z4 SIRA
BN End Mill; 3 mm Dia. × 7 mm LOC × 6 mm Shank Dia. × 58 mm OAL ; 4 FL ; Solid Carbide ; SIRON-A ; Series ST5341

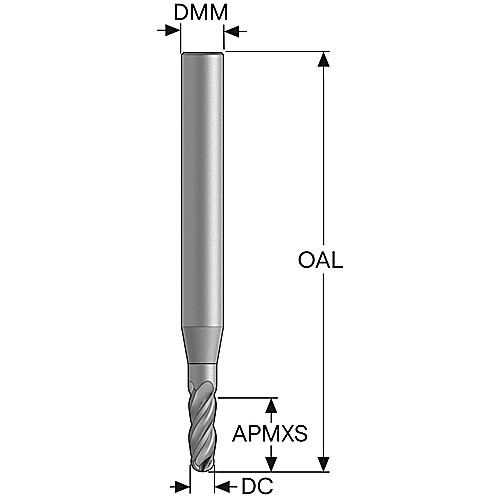

| Cutting Diameter (DC) | 3 mm | Tool Type | Ballnose Endmill |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Group | Short |
| Depth of Cut Maximum (APMX) | 7 mm | End Shape | Ball |
| Overall Length (OAL) | 58 mm | Flute Type | Helical |
| Cutting Edge Material | Solid Carbide | Coolant Supply Property (CSP) | External |
| Coating | SIRON-A | Shank Standard | h5 |
| Flute Count (NOF) | 4 | Body Material | Solid Carbide |
| Flute Helix Angle (FHA) | 30 | Decimal Equivalent | 3 mm |
| Shank Type | Cylindrical | Measurement Type | Metric |
| Usable Length (LU) | 10.68 mm | Series/List # | ST5341 |
| Applicable Material | Steel | Cast Iron | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1.5 mm | Center Cutting | Yes |
| Neck Diameter (DN) | 3.13 mm | Single / Double End | Single End |
| Neck Length (LN) | 10.68 mm | Tool Cutting Edge Angle (KAPR) | 90 |
| Number of Teeth | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.01
