ST5341-.250E2B.3Z4 SIRA

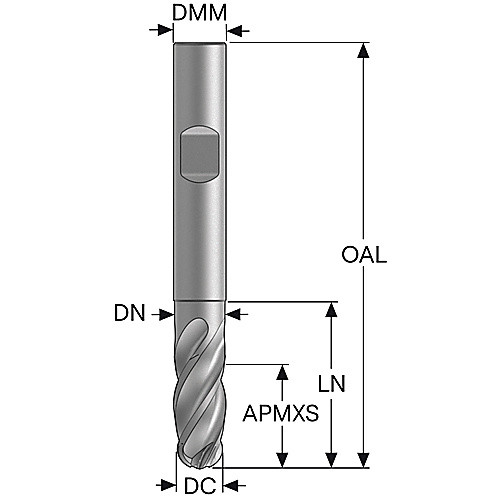

BN End Mill; 0.25″ Dia. × 0.5″ LOC × 0.25″ Shank Dia. × 2.5″ OAL ; 4 FL ; Solid Carbide ; SIRON-A ; Series ST5341
| Cutting Diameter (DC) | 0.25″ | Tool Type | Ballnose Endmill |
| Connection Diameter Machine Side (DCONMS) | 0.25″ | Length Group | Short |
| Depth of Cut Maximum (APMX) | 0.5″ | End Shape | Ball |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Helical |
| Cutting Edge Material | Solid Carbide | Coolant Supply Property (CSP) | External |
| Coating | SIRON-A | Shank Standard | ANSI B94.19 |
| Flute Count (NOF) | 4 | Body Material | Solid Carbide |
| Flute Helix Angle (FHA) | 30 | Decimal Equivalent | 0.25″ |
| Shank Type | Weldon | Measurement Type | Inch |
| Usable Length (LU) | 0.75″ | Series/List # | ST5341 |
| Applicable Material | Steel | Cast Iron | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1/8″ | Center Cutting | Yes |
| Neck Diameter (DN) | 0.24″ | Single / Double End | Single End |
| Neck Length (LN) | 0.75″ | Tool Cutting Edge Angle (KAPR) | 90 |
| Number of Teeth | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.5
