T34-PH09B95-1/2-20-22R
Spiral Point Tap; 0.5″ × 1.27 mm - 20 ; 3.937″ OAL ; 3 FL ; HSS-E-PM ; TiAlN/WC/C ; 2BX ; Series T34
Additional Tariff Surcharge of 8 %

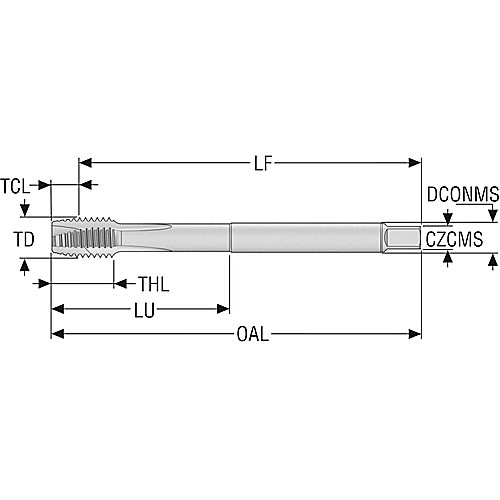

| Thread Standard | UNF | Application | Through-Hole Threading |
| Thread Size | 1/2″ - 20 | Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Thread Diameter Size (TDZ) | 0.5″ | Thread Cutting Part Length (THL) | 0.5906″ |
| Threads per Inch (TPI) | 20 | Tapping Prehole Diameter (Pre-hole) | 0.4528″ |
| Thread Pitch (TP) | 1.27 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 2BX | End Shape | Plug |
| Usable Length (LU) | 2.8276″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 3.937″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | TiAlN/WC/C | Length Group | 3xD |
| Flute Count (NOF) | 3 | Square Size | 9.322 × 6.99 mm |
| Cutting Edge Material | HSS-E-PM | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T34 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Non-Ferrous Metal | Superalloy | Thread Form Type (THFT) | UNF |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.11
