T34-PH08B96-1-8-22R
Spiral Point Tap; 1″ × 3.18 mm - 8 ; 6.2992″ OAL ; 4 FL ; HSS-E-PM ; TiAlN/WC/C ; 2BX ; Series T34
Additional Tariff Surcharge of 8 %

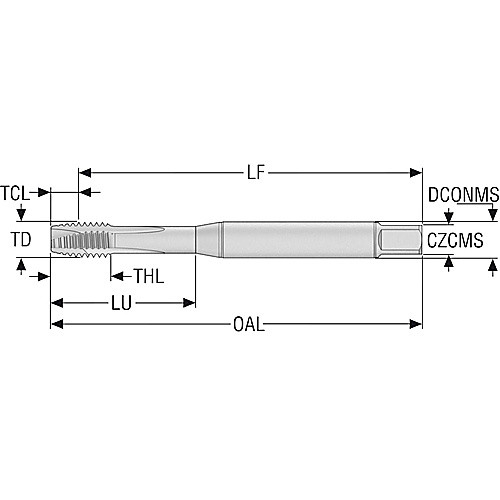

| Thread Standard | UNC | Application | Through-Hole Threading |
| Thread Size | 1″ - 8 | Connection Diameter Machine Side (DCONMS) | 0.8″ |
| Thread Diameter Size (TDZ) | 1″ | Thread Cutting Part Length (THL) | 1.4961″ |
| Threads per Inch (TPI) | 8 | Tapping Prehole Diameter (Pre-hole) | 0.876″ |
| Thread Pitch (TP) | 3.18 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 2BX | End Shape | Plug |
| Usable Length (LU) | 3.7571″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 6.2992″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | TiAlN/WC/C | Length Group | 3xD |
| Flute Count (NOF) | 4 | Square Size | 20.320 × 15.24 mm |
| Cutting Edge Material | HSS-E-PM | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T34 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Non-Ferrous Metal | Superalloy | Thread Form Type (THFT) | UNC |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.84
