T32-PN01B96-20X2.5-63R
Spiral Point Tap; 0.7874″ × 2.50 mm - 10.16 ; 5.5118″ OAL ; 4 FL ; HSS-E ; TiAlN | TiN ; 6H ; Series T32
Additional Tariff Surcharge of 8 %

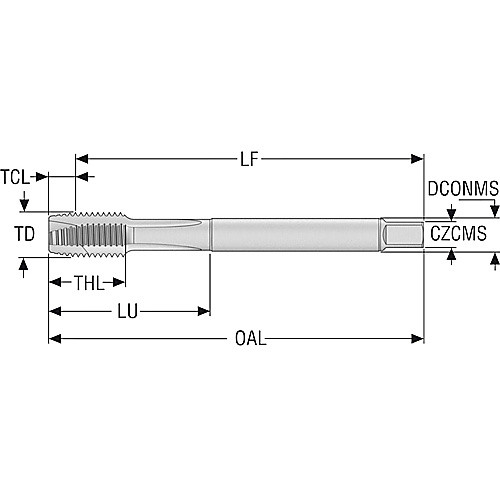

| Thread Standard | Metric | Application | Through-Hole Threading |
| Thread Size | M20 × 2.5 | Connection Diameter Machine Side (DCONMS) | 0.652″ |
| Thread Diameter Size (TDZ) | 0.7874″ | Thread Cutting Part Length (THL) | 1.2598″ |
| Threads per Inch (TPI) | 10.16 | Tapping Prehole Diameter (Pre-hole) | 0.689″ |
| Thread Pitch (TP) | 2.50 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 6H | End Shape | Plug |
| Usable Length (LU) | 3.6406″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 5.5118″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | TiAlN | TiN | Length Group | 3xD |
| Flute Count (NOF) | 4 | Square Size | 16.561 × 12.42 mm |
| Cutting Edge Material | HSS-E | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T32 |
| Applicable Material | Stainless Steel | Steel | Cast Iron | Non-Ferrous Metal | Thread Form Type (THFT) | M |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.54
