T32-R40N08C93-5-40-21R
Spiral Flute Tap; 0.125″ × 0.64 mm - 40 ; 2.252″ OAL ; 3 FL ; HSS-E-PM ; TiAlN | TiN ; 2B ; Series T32
Additional Tariff Surcharge of 8 %

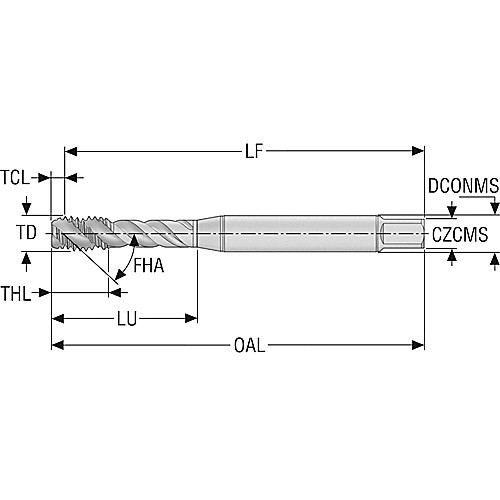

| Thread Diameter Size (TDZ) | #5 | Coating | TiAlN | TiN |
| Thread Pitch (TP) | 0.64 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 40 | Flute Type | Spiral |
| Thread Standard | UNC | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 2.252″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 0.2756″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 0.7142″ | Square Size | 3.581 × 2.79 mm |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Tapping Prehole Diameter (Pre-hole) | 0.1043″ |
| Flute Helix Angle (FHA) | 40 | ToolTypeName | Spiral Flute |
| Cutting Length | 0.7142″ | Thread Form Type (THFT) | UNC |
| Applicable Material | | General Purpose | | Series/List # | T32 |
| Cutting Edge Material | HSSE-PM | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 2B | Drive Size (DRVS) | 3.581x2.79 mm |
| Tool Type | General Purpose | Thread Size | #5 - 40 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.01
