.625X3.5 OAL R.030 5FL

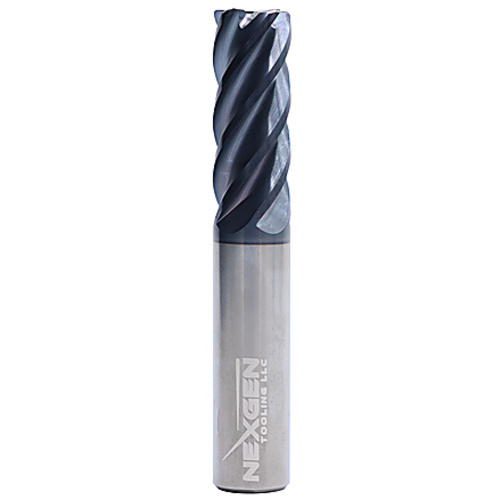

SQ End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 0.030″ RE ; 5 FL ; Micrograin Carbide ; A-ProMAX ; Series NXG-5
| Cutting Diameter (DC) | 5/8″ | Flute Count (NOF) | 5 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Tool Type | Endmill |
| Overall Length (OAL) | 3-1/2″ | Decimal Equivalent | 0.625″ |
| Cutting Edge Material | Micrograin Carbide | Series/List # | NXG-5 |
| Coating | A-ProMAX | Corner Radius (RE) / Chamfer Width (CHW) | 0.030″ |
Product Features
| Country of Origin | USA |
